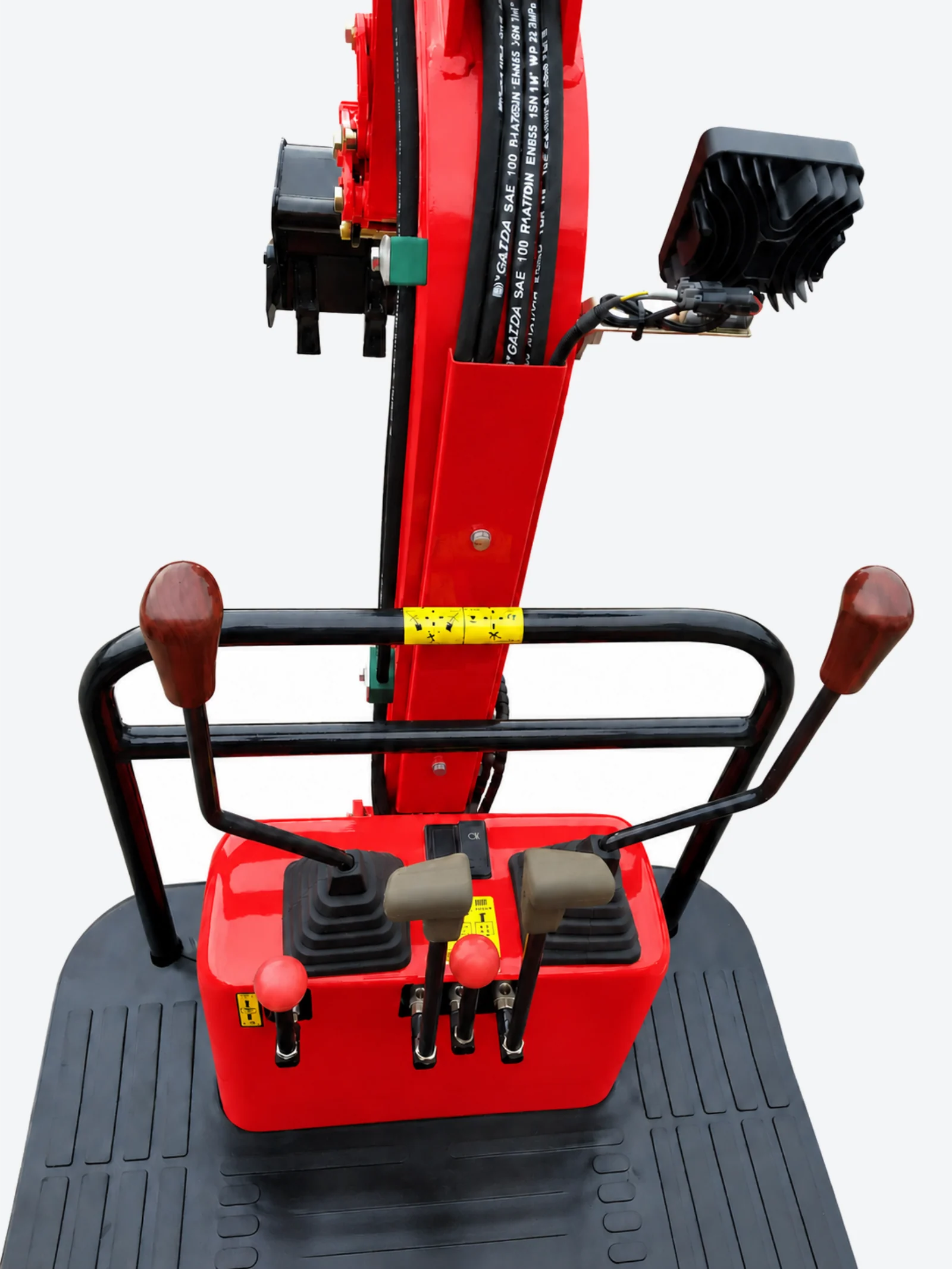

Ergonomic Front Controls
Front-mounted mechanical levers are ergonomically positioned for comfortable reach and straightforward operation.
HS10 Mini Excavator
The HS10 is a compact mini excavator designed for easy transport and work in tight spaces. Its EU Stage V KOOP diesel engine, front mechanical controls and standard hydraulic breaker line support everyday digging and compatible concrete- and rock-breaking attachments.

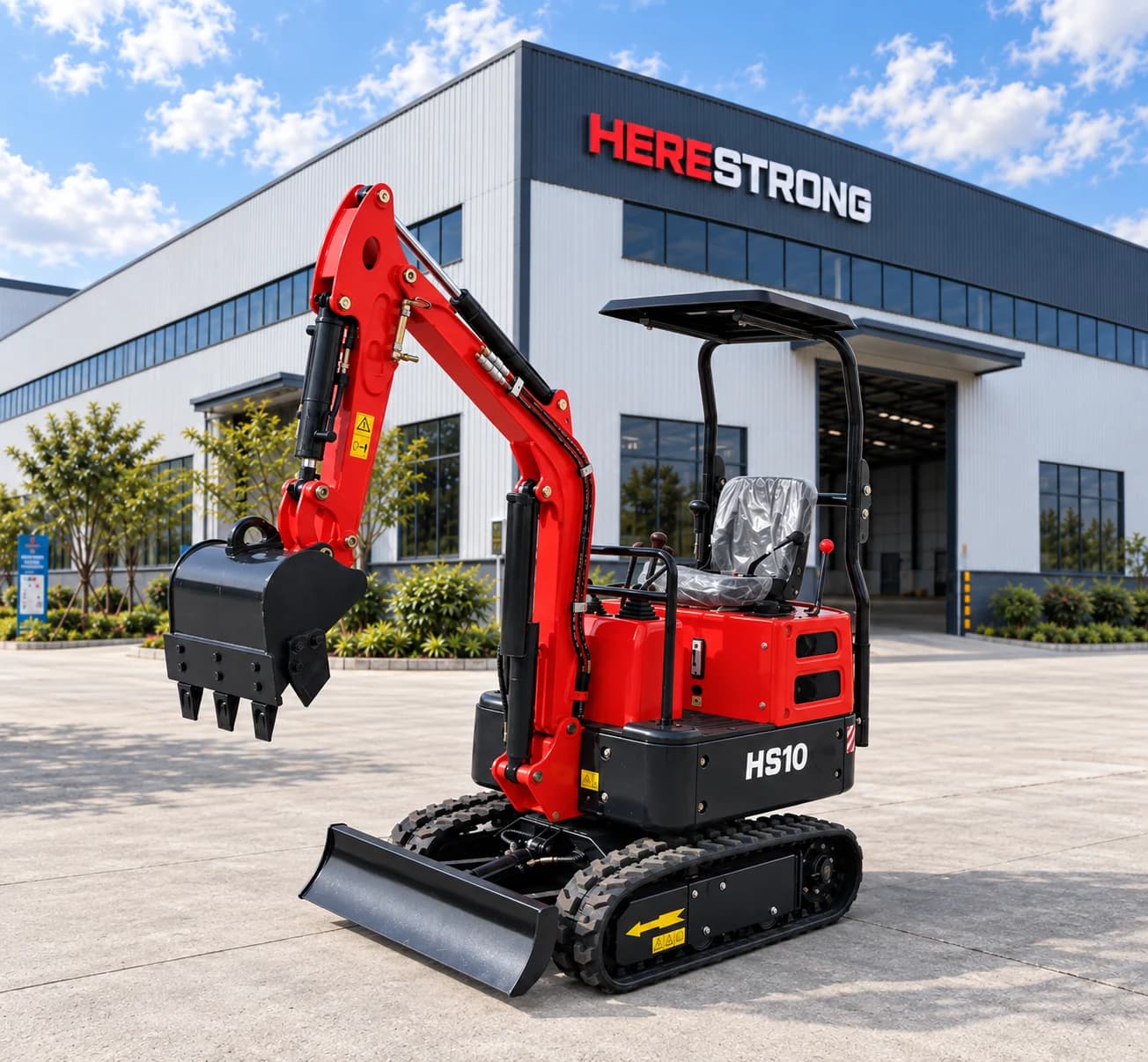

Main View
- Operating Weight
- 1,050 kg
- Engine Power
- 7 kW
- Max. Digging Depth
- 1,500 mm
KEY CONFIGURATION
- Engine
- KOOP KD192F
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operation
- Front Mechanical Controls
- Standard Bucket Width
- 350 mm
- Bucket Capacity
- 0.024 m³
MACHINE FEATURES

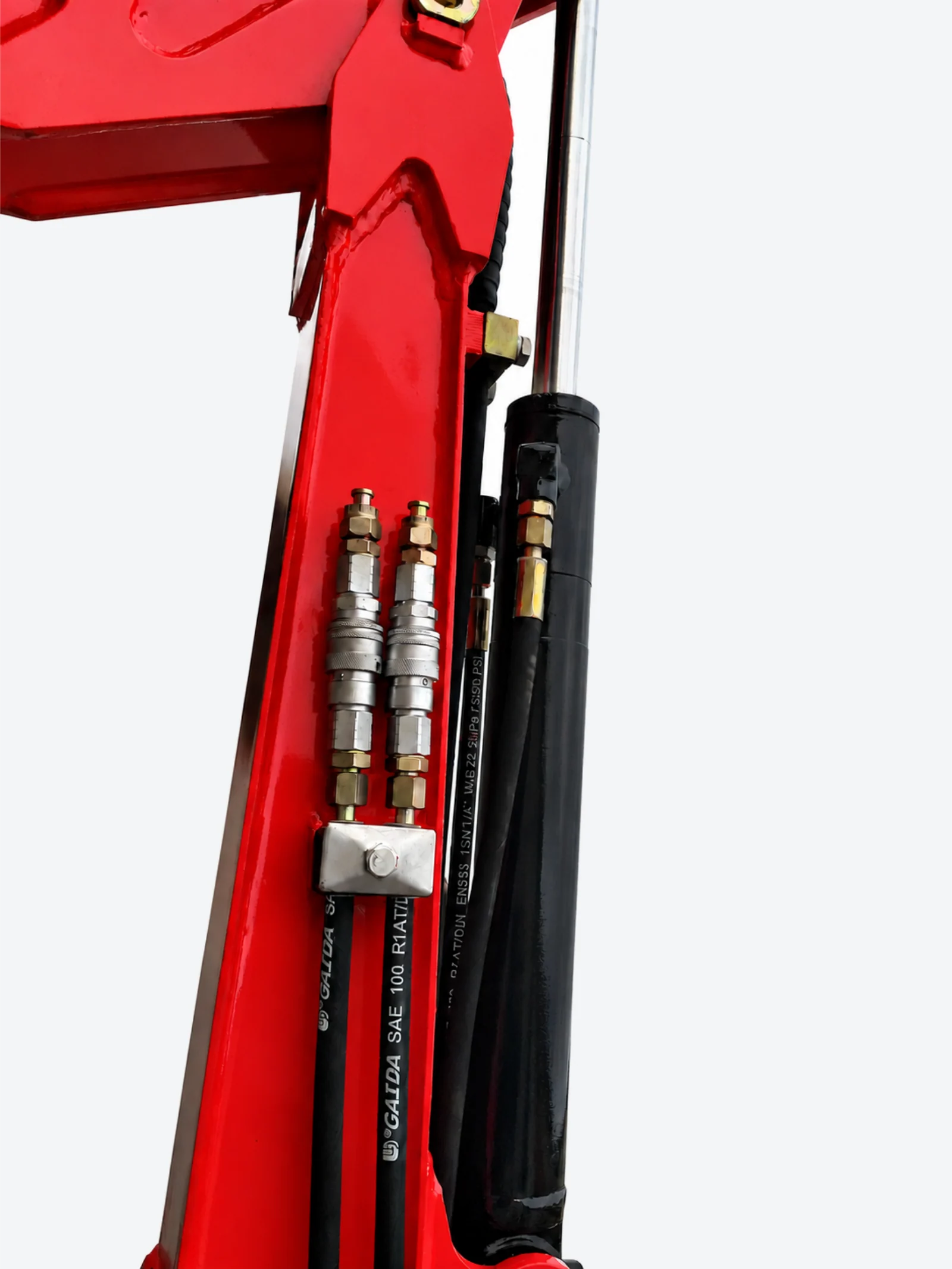

Breaker-Ready Hydraulic Line
The standard hydraulic breaker line allows a compatible breaker to be added later for concrete and rock breaking.

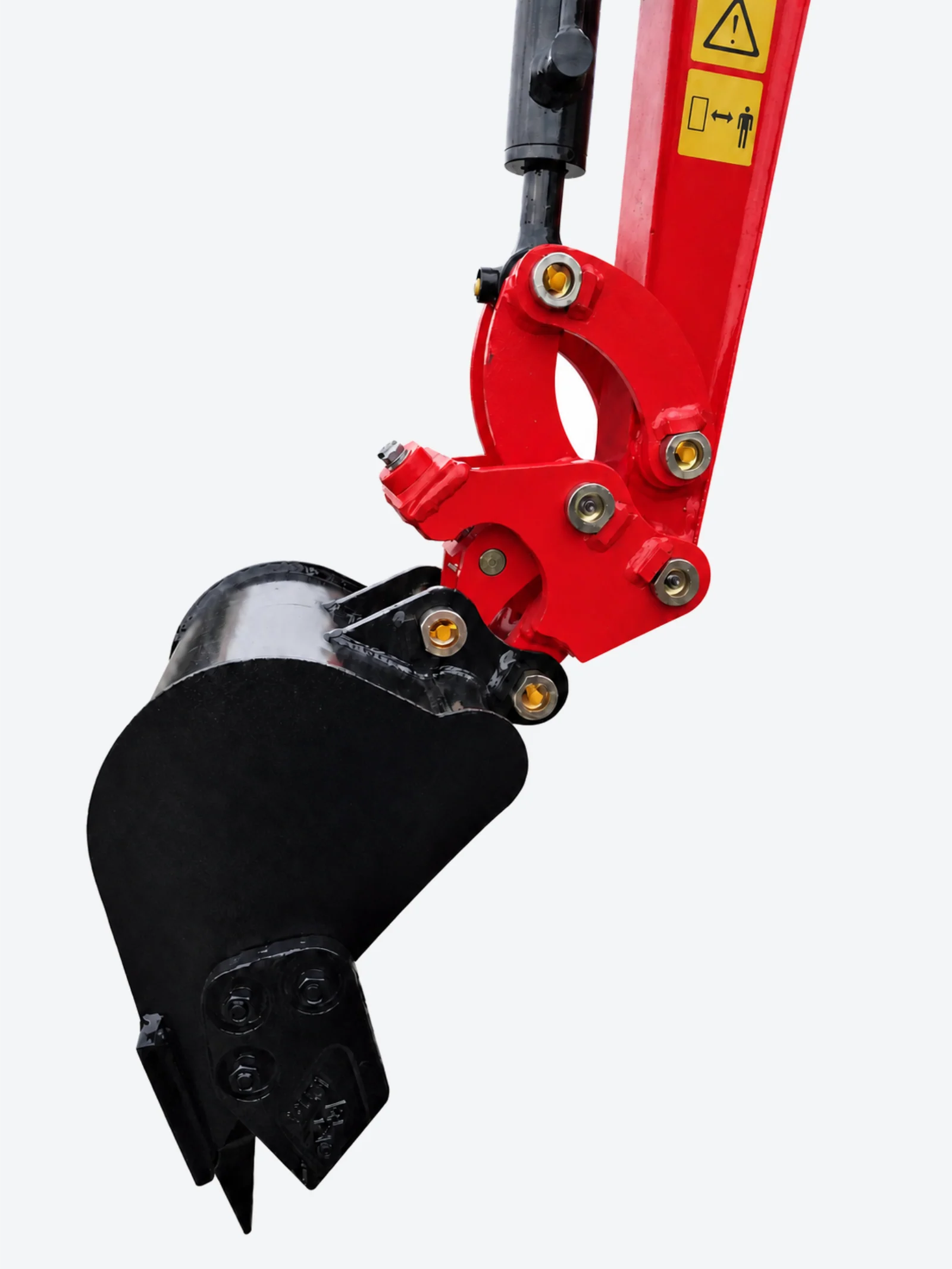

Mechanical Quick Coupler
The optional mechanical quick coupler makes switching between compatible buckets and attachments more convenient for different jobs.

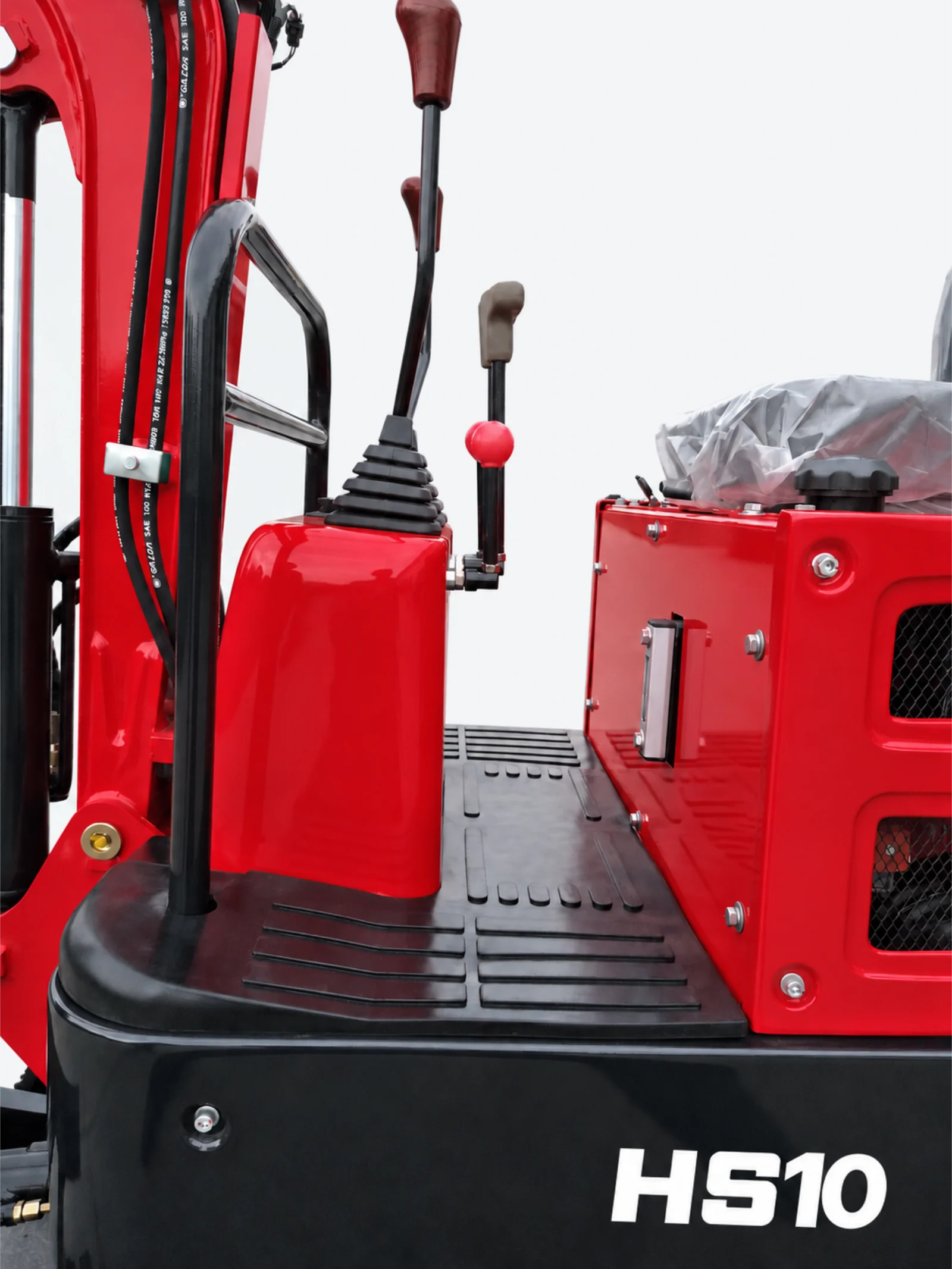

Open Operator Platform
The open operator platform provides convenient access to the seat and controls.
TECHNICAL SPECIFICATIONS
Engine
- Brand
- KOOP
- Model
- KD192F
- Rated Power
- 7 kW (9.4 hp)
- Rated Speed
- 3,000 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
Machine
- Operating Weight
- 1,050 kg
- Overall Length
- 2,867 mm
- Overall Width
- 900 mm
- Overall Height
- 1,385 mm
- Standard Bucket Capacity
- 0.024 m³
- Standard Bucket Width
- 350 mm
Hydraulics
- Hydraulic Pressure
- 17 MPa
- Bucket Digging Force
- 9 kN
- Arm Digging Force
- 7 kN
Chassis & Arm
- Track Type
- Rubber
- Track Width
- 180 mm
- Track Contact Length
- 900 mm
- Ground Clearance
- 245 mm
- Ground Pressure
- 33.7 kPa
- Boom Length
- 1,480 mm
- Arm Length
- 800 mm
Travel & Swing
- Travel Speed
- 0–4.5 km/h
- Swing Speed
- 17 rpm
- Max. Gradeability
- 30° (58%)
Working Range
- Max. Digging Depth
- 1,500 mm
- Max. Digging Reach
- 2,925 mm
- Digging Reach at Ground Level
- 2,827 mm
- Max. Digging Height
- 2,685 mm
- Max. Dumping Height
- 2,059 mm
- Max. Vertical Digging Depth
- 973 mm
- Minimum Swing Radius
- 1,289 mm
- Tail Swing Radius
- 820 mm
DIMENSIONS & WORKING RANGE
All dimensions in mm. Height with rear ROPS frame, measured in the illustrated transport position. Specifications are subject to change without notice.
OPEN FULL-SIZE DRAWINGSTANDARD EQUIPMENT
- KOOP KD192F Engine
- Front Mechanical Controls
- Rear ROPS Frame
- Rubber Tracks
- 350 mm Standard Bucket
- Auxiliary Hydraulic Line
OPTIONAL EQUIPMENT
- Two-post ROPS Canopy
- Four-post ROPS Canopy
- Retractable Undercarriage
- Boom Swing
- Hydraulic Pilot Controls
ATTACHMENT OPTIONS
Mechanical Quick Coupler
Hydraulic Breaker
Log Grapple
Digging Bucket
Cleaning Bucket
Tilting Bucket
Skeleton Bucket
Auger
Ripper
Rake
Hydraulic Thumb
Mechanical Thumb
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS10 Order?
The HERESTRONG export team can help with your HS10 configuration, attachment selection and quotation.
