KYB Load-Sensing Hydraulics
KYB pump, main valve and swing motor with load-sensing control and 56 kN bucket digging force.

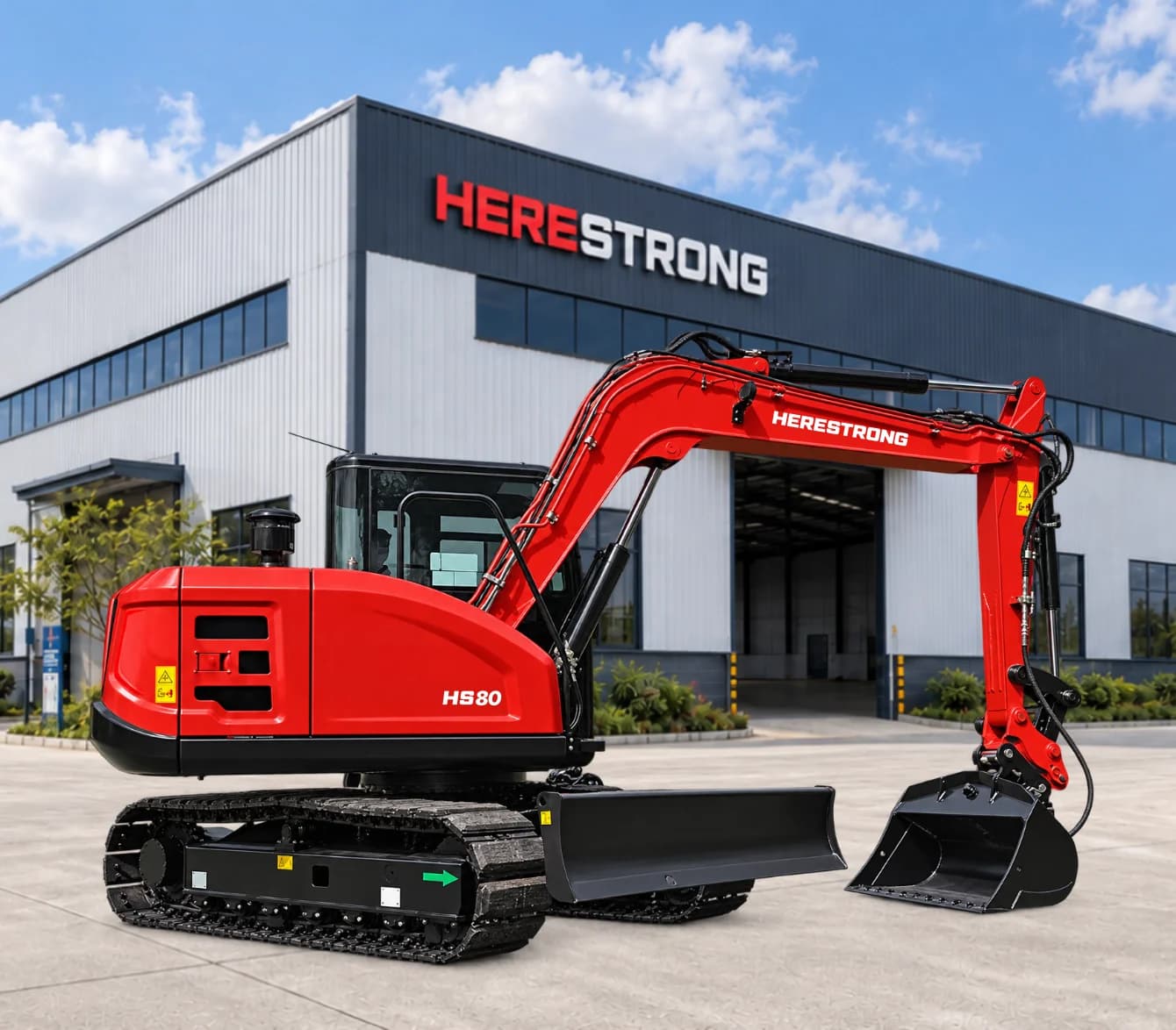

HS80 Mid-Size Excavator
The HS80 is an 8-tonne-class crawler excavator designed for high-output outdoor work. KYB load-sensing hydraulics, a YANMAR diesel engine and a steel-track undercarriage combine strong digging performance with efficient operation, making it well suited to earthmoving, road and utility trenching, drainage work, land clearing and loading trucks.
Main View
- Operating Weight
- 8,000 kg
- Engine Power
- 53.7 kW
- Max. Digging Depth
- 4,100 mm
KEY CONFIGURATION
- Engine
- YANMAR 4TNV98CT
- Rated Engine Power
- 53.7 kW
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operating Weight
- 8,000 kg
- Hydraulic System
- Load-Sensing
- Pump, Valve & Swing Motor
- KYB
- Air Conditioning
- Standard
- Standard Bucket
- 0.32 m³ / 800 mm
MACHINE FEATURES
Built for Heavy Outdoor Work
Steel tracks, EDDIE two-speed travel motors and front dozer blade for rough terrain.
YANMAR Engine & Easy Access
YANMAR 4TNV98CT engine, 53.7 kW at 2,100 rpm, with easy rear service access.
Enclosed Cab & Hydraulic Joysticks
Air-conditioned ROPS / TOPS / FOPS cab with radio and ISO hydraulic joysticks.
TECHNICAL SPECIFICATIONS
General
- Operating Weight
- 8,000 kg
- Standard Bucket Capacity
- 0.32 m³
- Bucket Width
- 800 mm
- Enclosed Cab with A/C
- Standard
- Cab Protection
- ROPS/TOPS/FOPS
Engine
- Engine Model
- YANMAR 4TNV98CT
- Rated Power
- 53.7 kW
- Rated Speed
- 2,100 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
Tank Capacities
- Fuel Tank
- 135 L
- Hydraulic Oil Tank
- 130 L
Hydraulics
- Hydraulic System
- Load-Sensing
- Main Pump
- KYB
- Main Control Valve
- KYB
- Swing Motor
- KYB
- Travel Motor
- EDDIE two-speed
- Max. Pump Flow
- 2 × 75.6 L/min
- Working Pressure
- 27.5 MPa
- Arm Digging Force
- 38 kN
- Bucket Digging Force
- 56 kN
Working Range
- O — Max. Digging Height
- 7,130 mm
- P — Max. Dumping Height
- 5,010 mm
- Q — Max. Digging Depth
- 4,100 mm
- R — Max. Vertical Wall Depth
- 3,310 mm
- T — Max. Digging Reach
- 6,385 mm
- U — Digging Reach at Ground Level
- 6,245 mm
Travel & Swing
- Travel Speed
- 3.4 / 5.2 km/h
- Swing Speed
- 11 rpm
- Max. Gradeability
- 35° (70%)
- Ground Pressure
- 39 kPa
- Track Type
- Steel

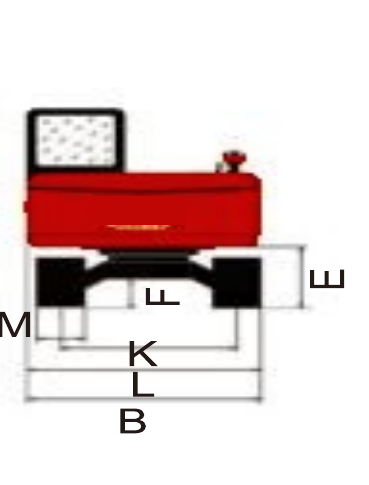

- H — Track Ground Length
- 2,200 mm
- J — Overall Track Length
- 2,785 mm
- K — Track Gauge
- 1,800 mm
- L — Overall Track Width
- 2,250 mm
- M — Track Shoe Width
- 450 mm

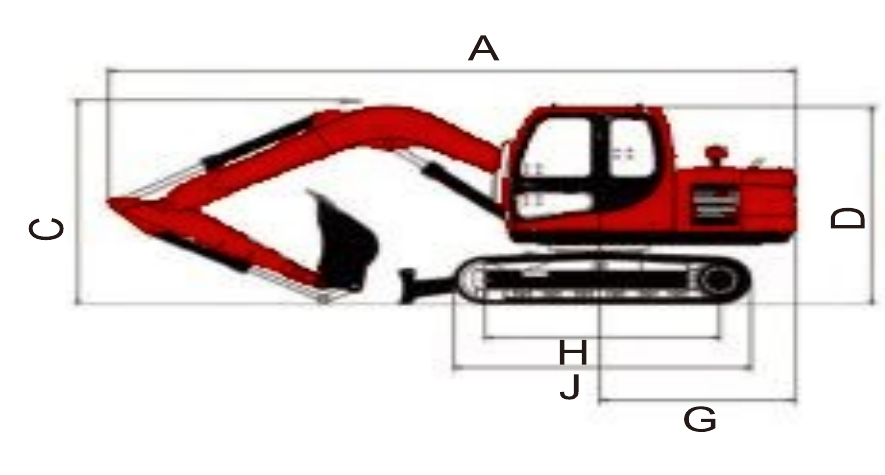

Dimensions
- A — Overall Length
- 6,245 mm
- B — Overall Width
- 2,250 mm
- C — Height to Top of Boom
- 2,500 mm
- D — Height to Top of Cab
- 2,600 mm
- E — Counterweight Clearance
- 820 mm
- F — Min. Ground Clearance
- 403 mm
- G — Tail Swing Radius
- 1,870 mm

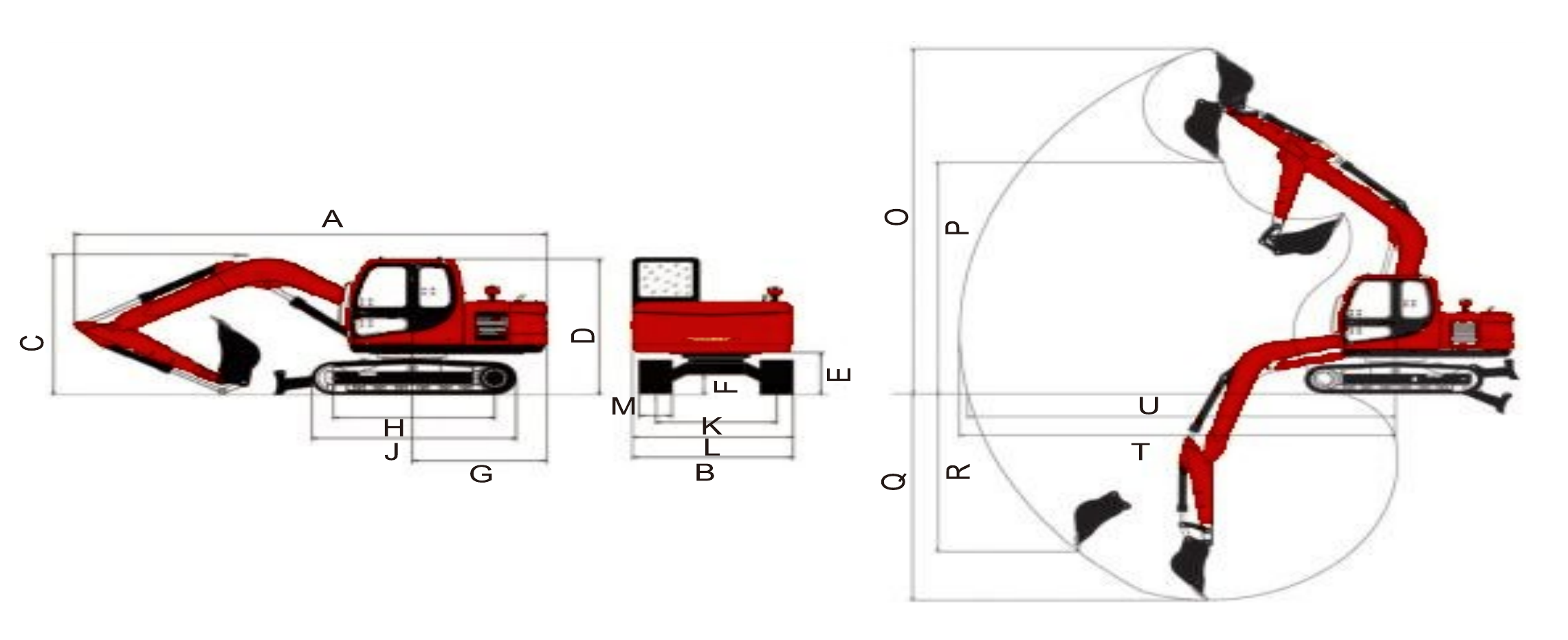

DIMENSIONS & WORKING RANGE
All dimensions in mm. Drawing letters correspond to the technical specifications above. Specifications are subject to change without notice.
STANDARD EQUIPMENT
- Enclosed ROPS / TOPS / FOPS cab with air conditioning
- Adjustable operator seat
- Hydraulic side joysticks with ISO controls
- KYB pump, main valve and swing motor
- EDDIE two-speed travel motors
- 450 mm steel tracks
- 0.32 m³ / 800 mm standard digging bucket
- Dozer blade
- Warning beacon and travel indicator lights
OPTIONAL EQUIPMENT
- Mechanical Quick Coupler
- Hydraulic Quick Coupler
- Auxiliary Hydraulic Lines
- Canopy
- Rubber Tracks
- Rubber Track Pads
ATTACHMENT OPTIONS
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS80 Order?
The HERESTRONG export team can help with your HS80 configuration, attachment selection and quotation.
