KYB Hydraulic System
KYB pump, control valve and motors with 45 kN bucket digging force for hard ground and heavy digging.
HS60 Mid-Size Excavator
The HS60 is a 6-tonne-class crawler excavator built for productive work on open jobsites. A KYB hydraulic system, a YANMAR diesel engine and robust steel tracks give it the digging power and stability for earthmoving, site preparation, trenching and land clearing, while two-speed travel keeps it moving efficiently across large work areas.

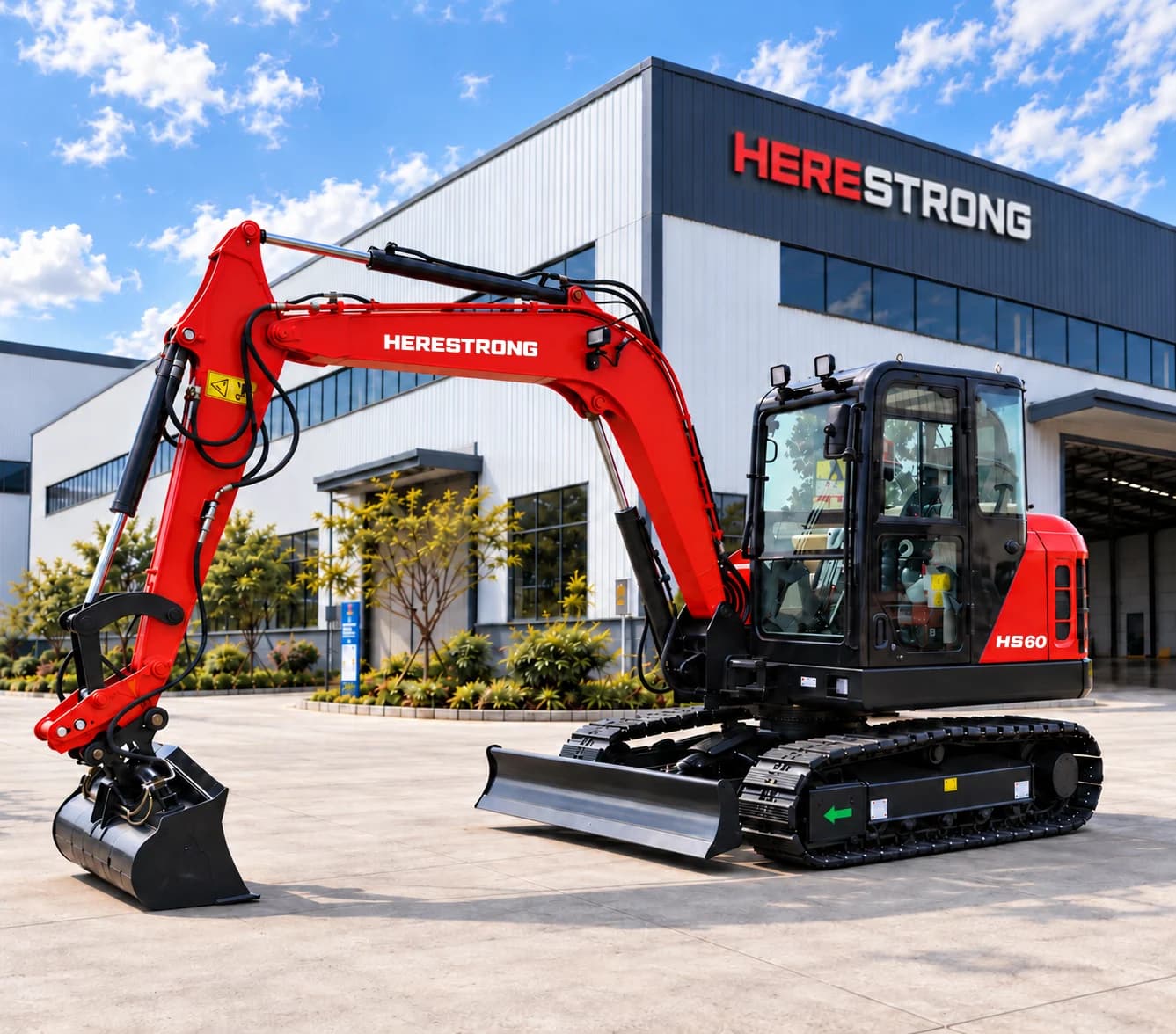

Main View
- Operating Weight
- 6,000 kg
- Engine Power
- 42.4 kW
- Max. Digging Depth
- 3,900 mm
KEY CONFIGURATION
- Engine
- YANMAR 4TNV98C
- Rated Engine Power
- 42.4 kW
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operating Weight
- 6,000 kg
- Hydraulic Components
- KYB
- Two-Speed Travel
- 2.5 / 4.0 km/h
- Air Conditioning
- Standard
- Standard Bucket
- 0.22 m³ / 750 mm
MACHINE FEATURES
Built for Open Jobsites
Steel tracks, dozer blade and two-speed travel for rough ground and large work areas.
YANMAR Engine & Easy Access
YANMAR 4TNV98C engine, 42.4 kW at 2,000 rpm, with easy rear service access.
Enclosed Cab & Hydraulic Joysticks
Air-conditioned ROPS / TOPS / FOPS cab with an adjustable seat, ISO hydraulic joysticks and floor travel pedals.
TECHNICAL SPECIFICATIONS
General
- Operating Weight
- 6,000 kg
- Standard Bucket Capacity
- 0.22 m³
- Bucket Width
- 750 mm
- Enclosed Cab with A/C
- Standard
- Cab Protection
- ROPS/TOPS/FOPS
Engine
- Engine Model
- YANMAR 4TNV98C
- Rated Power
- 42.4 kW
- Rated Speed
- 2,000 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
Tank Capacities
- Fuel Tank
- 125 L
- Hydraulic Oil Tank
- 110 L
Hydraulics
- Main Pump
- KYB
- Main Control Valve
- KYB
- Swing Motor
- KYB
- Travel Motor
- KYB
- Max. Pump Flow
- 160 L/min
- Working Pressure
- 24.5 MPa
- Arm Digging Force
- 31 kN
- Bucket Digging Force
- 45 kN

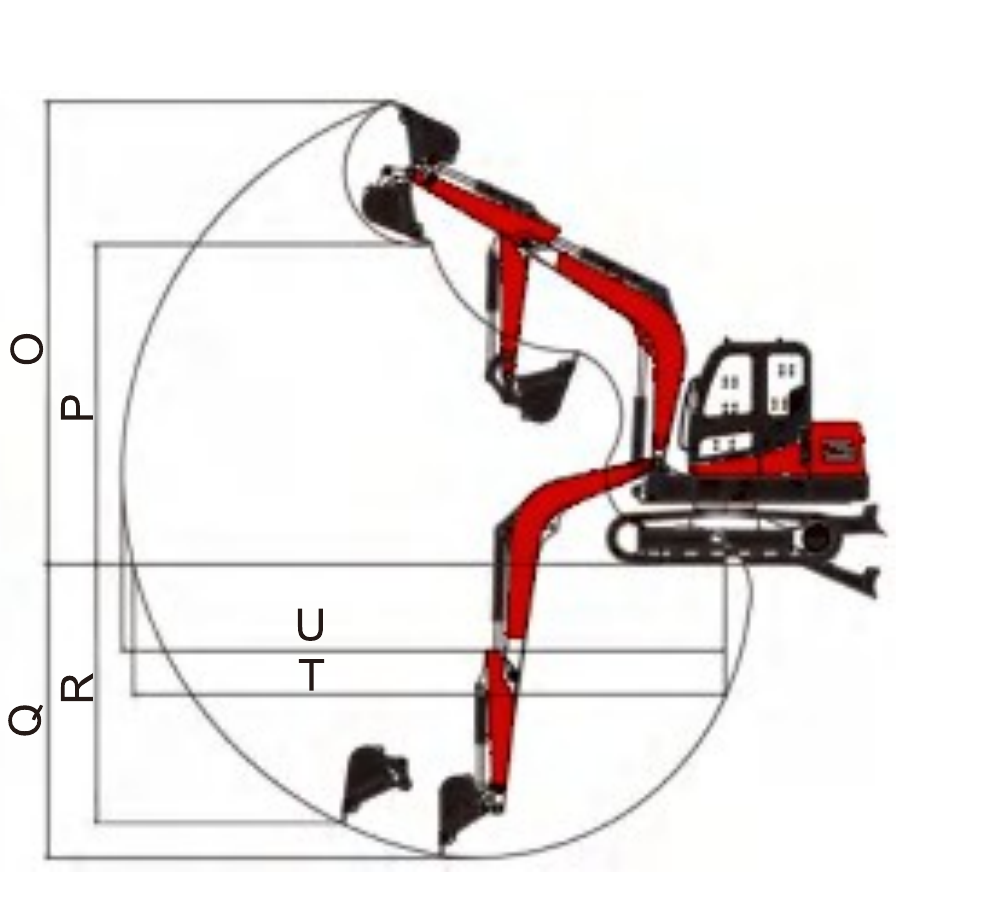

Working Range
- O — Max. Digging Height
- 5,889 mm
- P — Max. Dumping Height
- 4,201 mm
- Q — Max. Digging Depth
- 3,900 mm
- R — Max. Vertical Wall Depth
- 3,008 mm
- T — Max. Digging Reach
- 6,257 mm
- U — Digging Reach at Ground Level
- 6,102 mm
Travel & Swing
- Travel Speed
- 2.5 / 4.0 km/h
- Swing Speed
- 10 rpm
- Max. Gradeability
- 35° (70%)
- Ground Pressure
- 34 kPa
- Track Type
- Steel
- H — Track Ground Length
- 2,000 mm
- J — Overall Track Length
- 2,665 mm
- K — Track Gauge
- 1,600 mm
- L — Overall Track Width
- 2,000 mm
- M — Track Shoe Width
- 400 mm

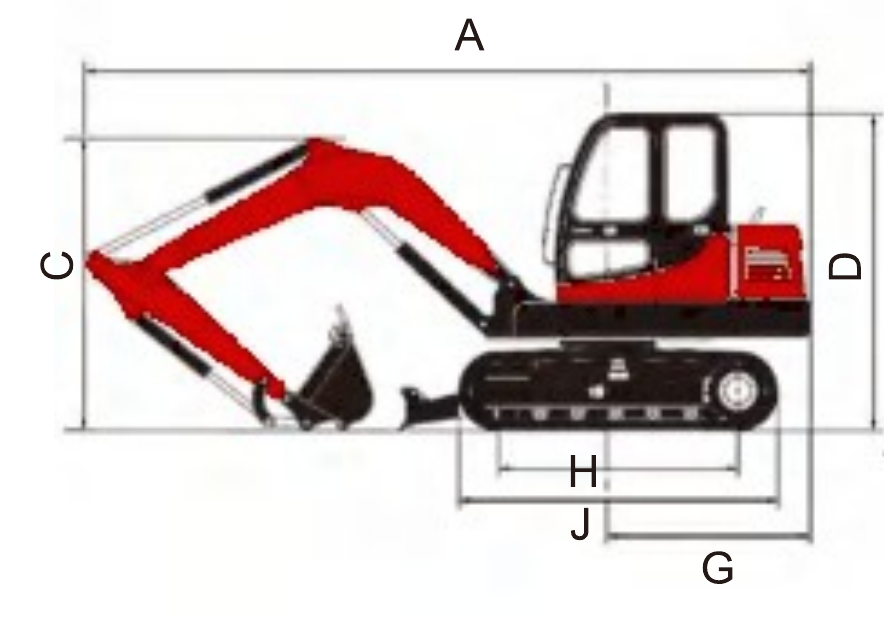

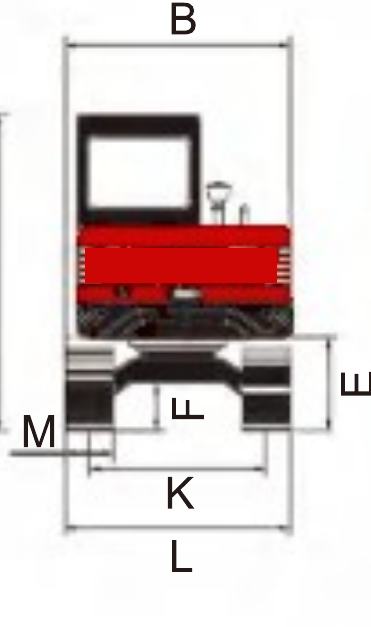

Dimensions
- A — Overall Length
- 5,943 mm
- B — Overall Width
- 2,000 mm
- C — Height to Top of Boom
- 1,995 mm
- D — Height to Top of Cab
- 2,650 mm
- E — Counterweight Clearance
- 740 mm
- F — Min. Ground Clearance
- 360 mm
- G — Tail Swing Radius
- 1,745 mm

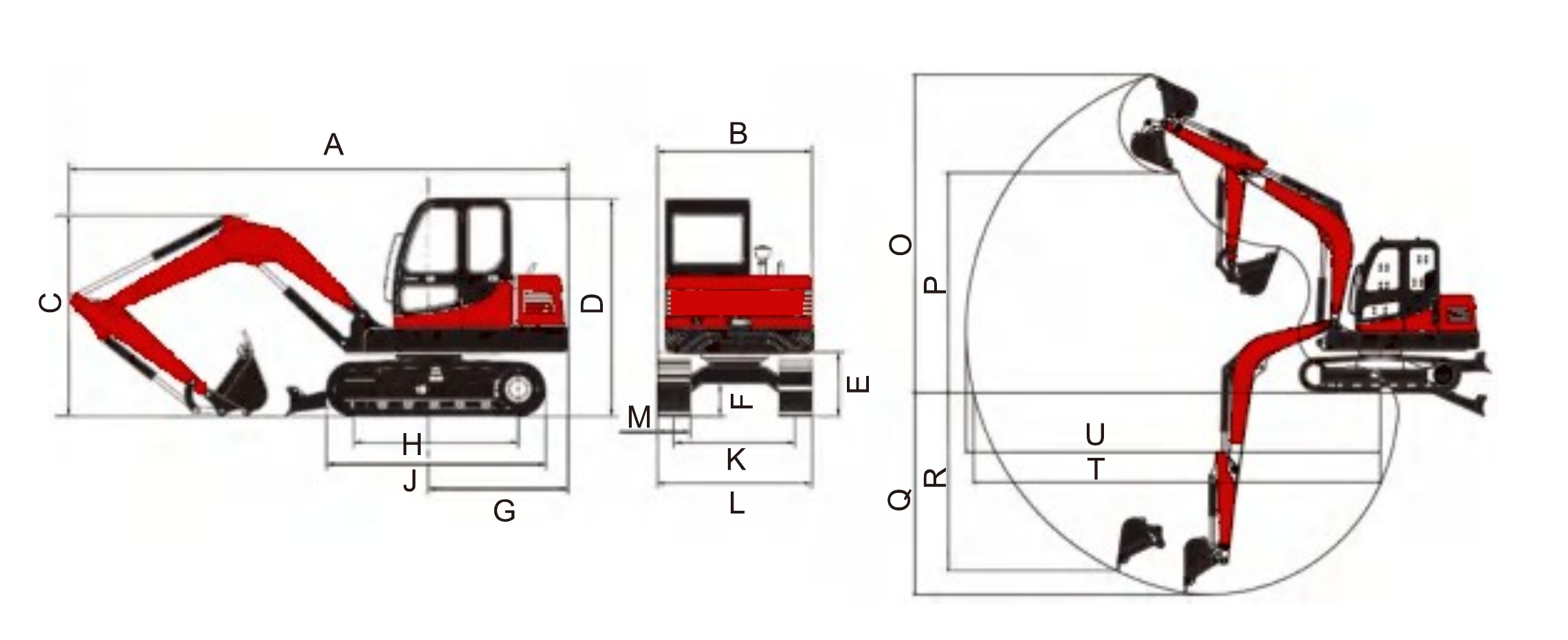

DIMENSIONS & WORKING RANGE
All dimensions in mm. Drawing letters correspond to the technical specifications above. Specifications are subject to change without notice.
STANDARD EQUIPMENT
- Enclosed ROPS / TOPS / FOPS cab with air conditioning
- Adjustable operator seat
- Hydraulic side joysticks with ISO controls
- KYB pump, main valve and motors
- Two-speed travel
- 400 mm steel tracks
- 0.22 m³ / 750 mm standard digging bucket
- Dozer blade
- Warning beacon and travel indicator lights
OPTIONAL EQUIPMENT
- Auxiliary Hydraulic Lines
- Mechanical Quick Coupler
- Hydraulic Quick Coupler
- Boom Swing
- Canopy
- Rubber Tracks
- Rubber Track Pads
ATTACHMENT OPTIONS
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS60 Order?
The HERESTRONG export team can help with your HS60 configuration, attachment selection and quotation.
