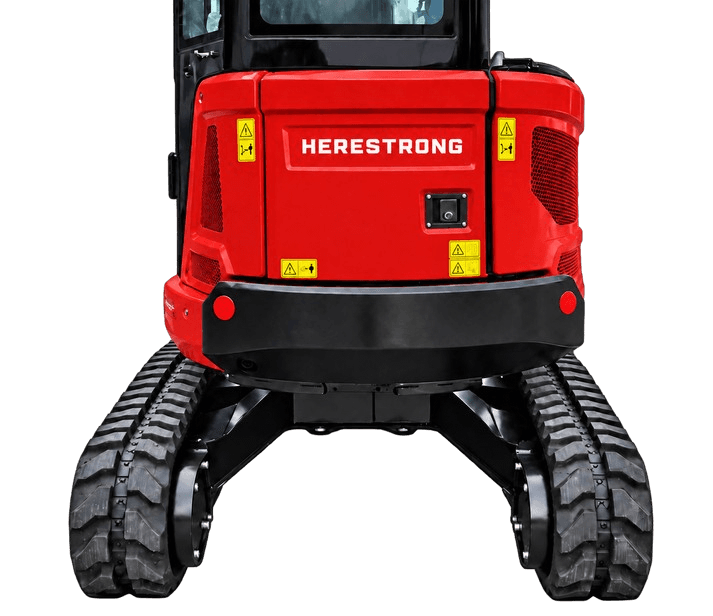

Zero Tail Swing
The HS38 has an 860 mm tail swing radius within the 1,720 mm machine width, so it can work close to walls and in confined spaces. Standard boom swing enables offset digging alongside walls and foundations.
HS38 Compact Excavator
The HS38 is a 3.8-tonne-class compact excavator equipped with a YANMAR diesel engine, load-sensing hydraulics and a zero tail swing design. Standard boom swing and hydraulic pilot controls support precise operation in confined jobsites, while the enclosed cab with standard air conditioning provides a comfortable working environment. Broad attachment compatibility makes the HS38 a versatile machine for construction, trenching, landscaping and utility work.

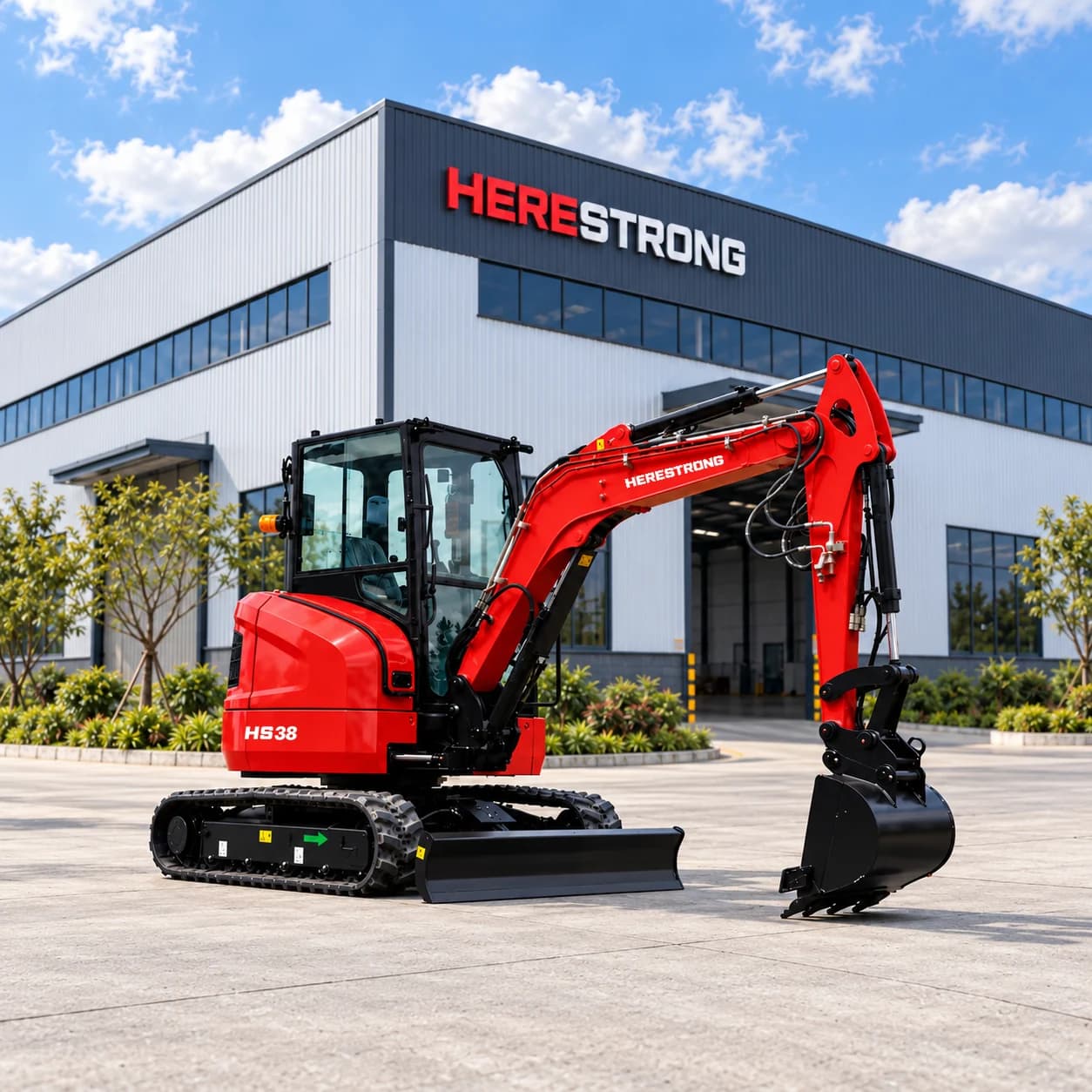

Main View
- Operating Weight
- 3,800 kg
- Engine Power
- 18.2 kW
- Max. Digging Depth
- 3,200 mm
KEY CONFIGURATION
- Engine
- YANMAR 3TNV88F
- Rated Engine Power
- 18.2 kW
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operating Weight
- 3,800 kg
- Hydraulic System
- Load-Sensing
- Main Pump & Valve
- LE-HYDRAULIX
- Air Conditioning
- Standard
- Standard Bucket Capacity
- 0.12 m³
MACHINE FEATURES

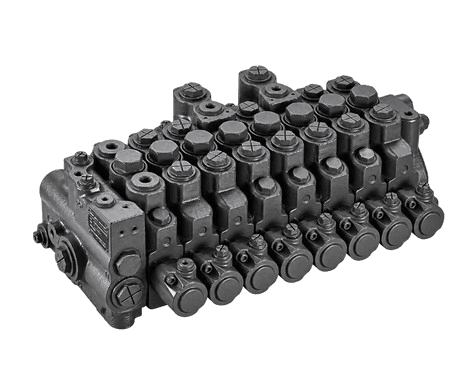

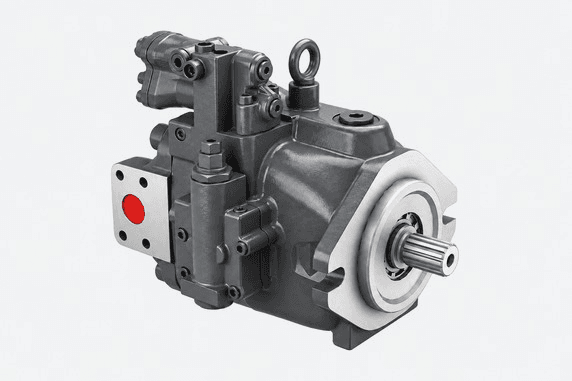

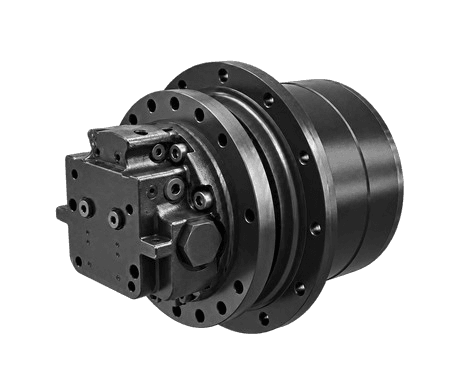

Load-Sensing Hydraulics
A standard load-sensing system, built with a LE-HYDRAULIX main pump and control valve and LONKING swing and travel motors, adjusts hydraulic flow according to working demand. This supports smooth, precise control, well-coordinated multi-function movements and efficient use of engine power during digging, grading and attachment work.

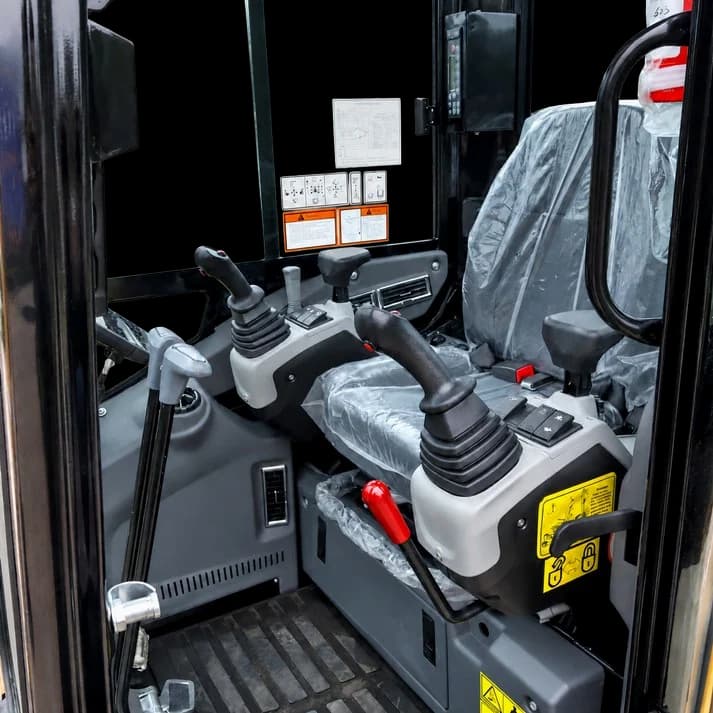

Operator Comfort & Pilot Controls
The ROPS / FOPS cab features wide glazing for a clear view of the bucket and work area, a suspension seat designed to reduce vibration and operator fatigue, and an LCD display for clear, at-a-glance machine monitoring. Standard air conditioning helps keep the cab comfortable, while hydraulic pilot joysticks provide light, precise control throughout long working days.

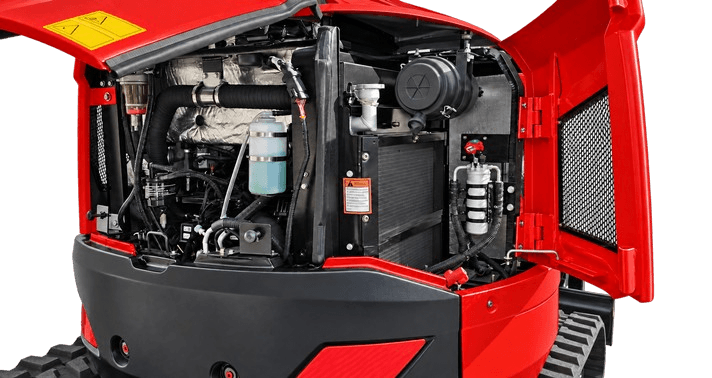

YANMAR Engine & Easy Maintenance
The YANMAR 3TNV88F diesel engine delivers 18.2 kW of rated power and is backed by YANMAR's worldwide parts and service network. The wide rear engine cover provides easy access to filters and to the engine oil and coolant check points, making routine inspections and scheduled maintenance straightforward.
TECHNICAL SPECIFICATIONS
General
- Operating Weight
- 3,800 kg
- Standard Bucket Capacity
- 0.12 m³
- ROPS / FOPS Enclosed Cab
- Standard
- Air Conditioning
- Standard
Engine
- Engine Model
- YANMAR 3TNV88F
- Rated Power
- 18.2 kW
- Rated Speed
- 2,200 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
Hydraulics
- Hydraulic System
- Load-Sensing
- Main Pump
- LE-HYDRAULIX
- Main Valve
- LE-HYDRAULIX

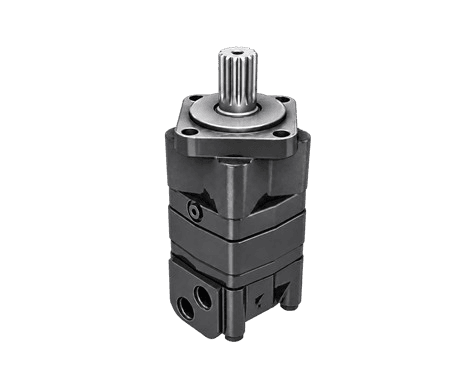

- Swing Motor
- LONKING
- Travel Motor
- LONKING
- Max. Flow
- 88 L/min
- Working Pressure
- 24.5 MPa
- Arm Digging Force
- 18.2 kN
- Bucket Digging Force
- 30.4 kN
Travel & Swing
- Travel Speed
- 2.2 / 4.2 km/h
- Swing Speed
- 9.5 rpm
- Ground Pressure
- 32.0 kPa
- Max. Gradeability
- 30° (58%)
- Track Type
- Rubber
- H — Track Ground Length
- 1,710 mm
- J — Track Overall Length
- 2,160 mm
- K — Track Gauge
- 1,420 mm
- L — Overall Track Width
- 1,710 mm
- M — Track Shoe Width
- 300 mm
Dimensions
- A — Overall Length
- 4,920 mm
- B — Overall Width
- 1,720 mm
- C — Height to Top of Boom
- 1,800 mm
- D — Height to Top of Cab
- 2,520 mm
- E — Counterweight Clearance
- 580 mm
- F — Min. Ground Clearance
- 295 mm
- G — Tail Swing Radius
- 860 mm
Tank Capacities
- Hydraulic Oil Tank
- 40 L
- Fuel Tank
- 50 L

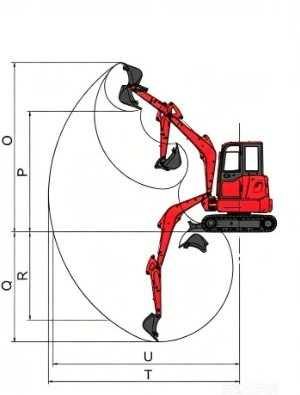

Working Range
- O — Max. Digging Height
- 4,855 mm
- P — Max. Dumping Height
- 3,460 mm
- Q — Max. Digging Depth
- 3,200 mm
- R — Max. Vertical Wall Depth
- 2,700 mm
- T — Max. Digging Reach
- 5,465 mm
- U — Digging Reach at Ground Level
- 5,350 mm

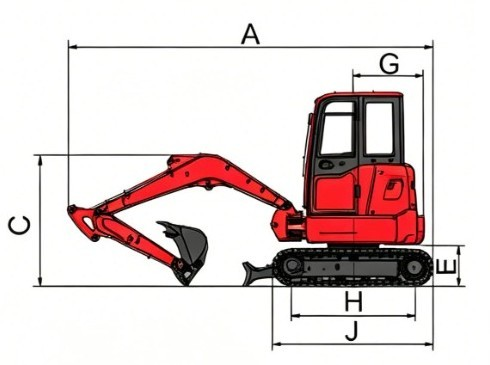

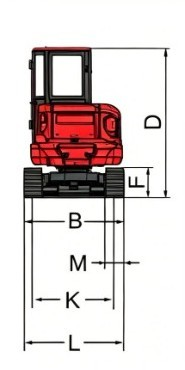

DIMENSIONS & WORKING RANGE
All dimensions in mm. Drawing letters correspond to the technical specifications above. Specifications are subject to change without notice.
STANDARD EQUIPMENT
- ROPS / FOPS enclosed cab
- Air conditioning
- Hydraulic pilot controls
- Boom swing
- Two-speed travel
- Rubber tracks
- Dozer blade
- Auxiliary hydraulic line
- Load-sensing hydraulics
- 0.12 m³ standard digging bucket
- Suspension seat
- LCD display
OPTIONAL EQUIPMENT
- Steel Tracks
- Quick Couplers
- Canopy
- Rear Counterweight
- Crane Valve
- ISO / SAE Switch
- Imported Hydraulic System
- Rubber Track Pads
ATTACHMENT OPTIONS
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS38 Order?
The HERESTRONG export team can help with your HS38 configuration, attachment selection and quotation.
