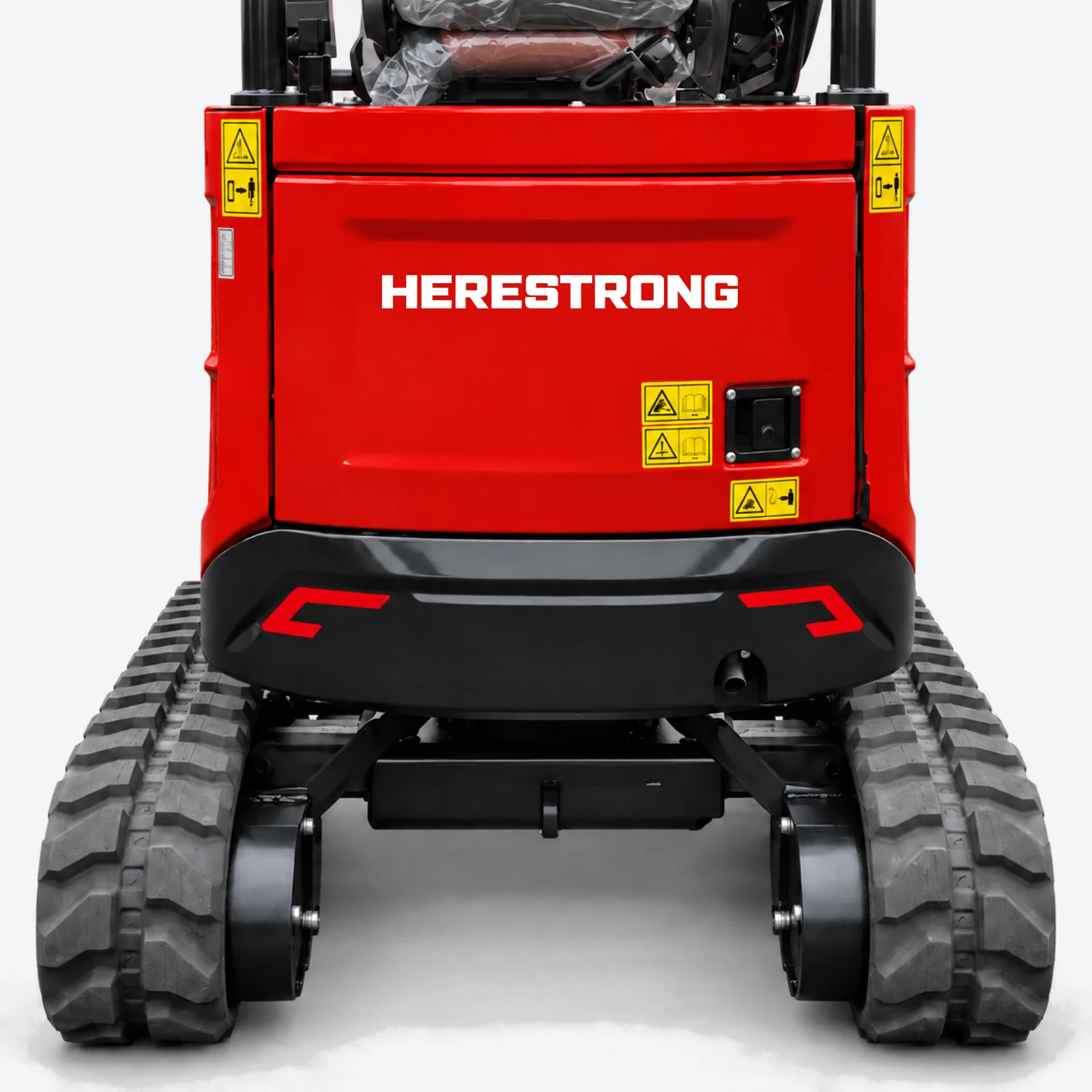

Zero Tail Swing
The HS18 is a zero tail swing model, allowing close work along walls and in confined spaces.
HS18 Mini Excavator
The HS18 is a 1.8-tonne-class mini excavator for construction, landscaping, utility work and property maintenance. Standard boom swing, hydraulic pilot controls and two-speed travel support precise work, while the retractable undercarriage narrows for restricted access.

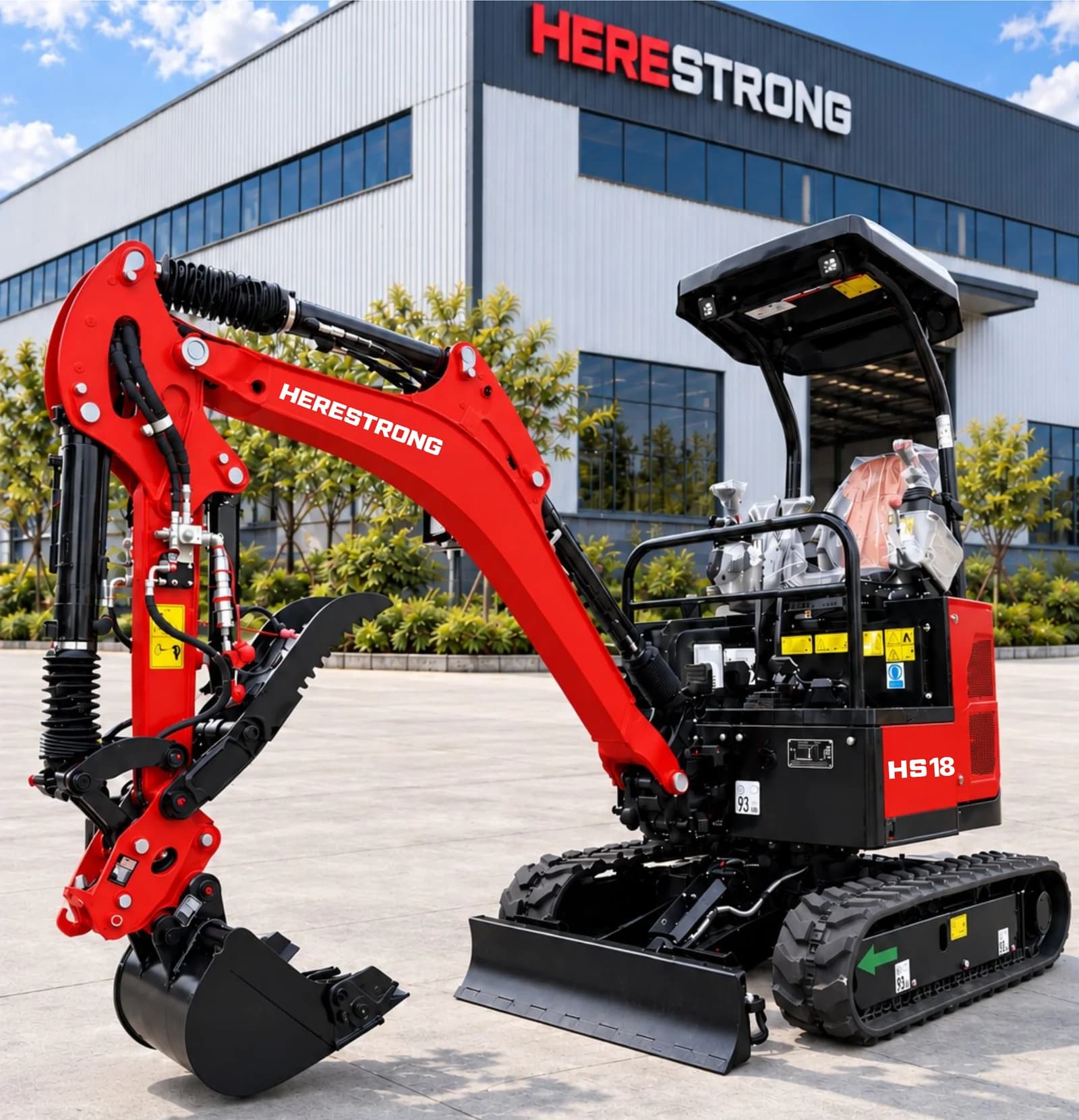

Main View
- Operating Weight
- 1,800 kg
- Engine Power
- 11.2 kW
- Max. Digging Depth
- 2,200 mm
KEY CONFIGURATION
- Engine
- YANMAR 3TNV74F
- Engine Power
- 11.2 kW
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operation
- Hydraulic Pilot Controls
- Tail Swing Radius
- 660 mm
- Boom Swing
- Standard · 61° Left / 53° Right
- Undercarriage Width
- 990–1,320 mm
- Travel Speed
- 2.0 / 4.0 km/h
- Bucket Capacity
- 0.04 m³
MACHINE FEATURES

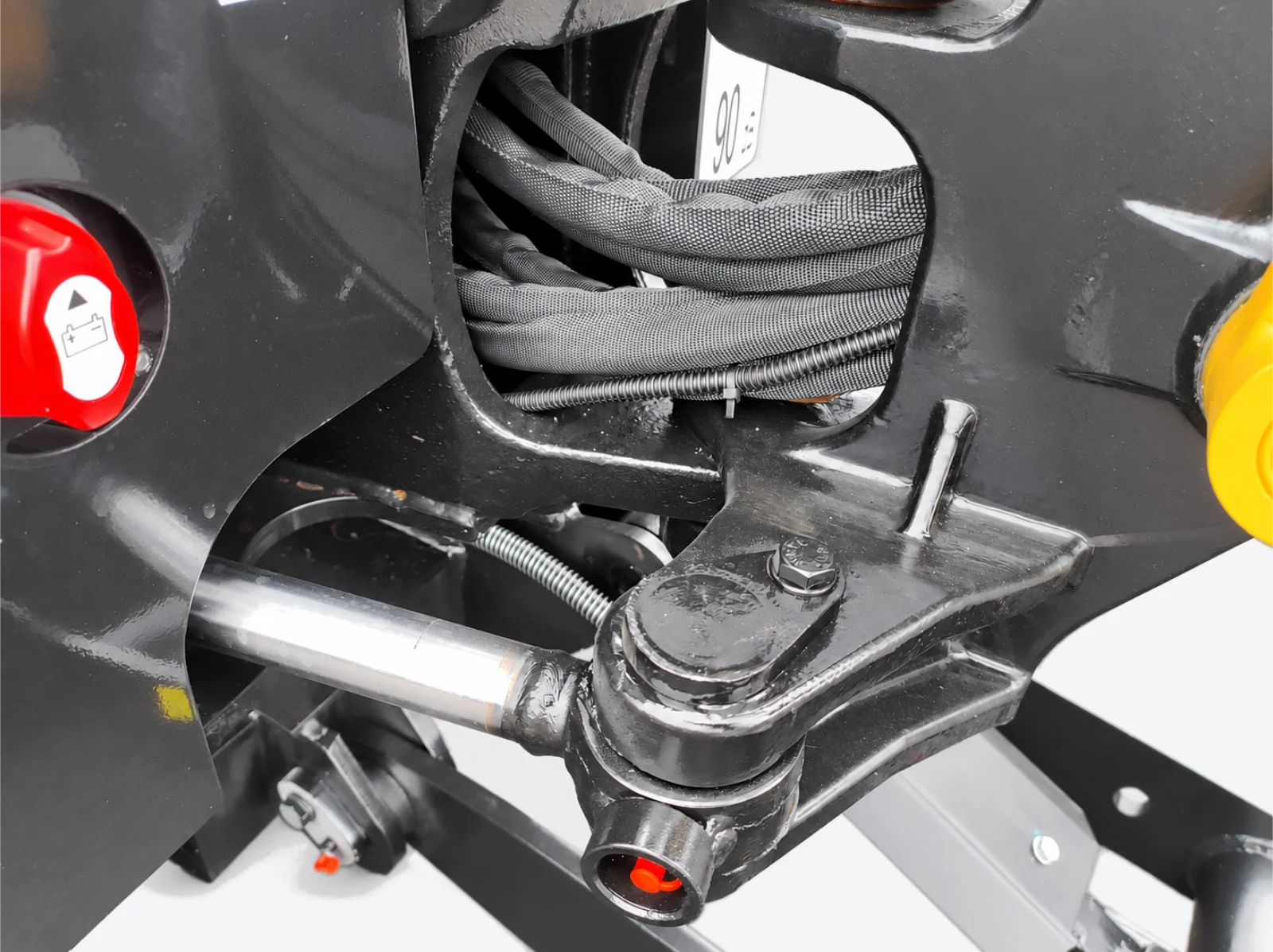

Boom Swing
Standard boom swing, with 61° left and 53° right movement, allows offset digging alongside walls and fences, reducing the need to reposition the machine.

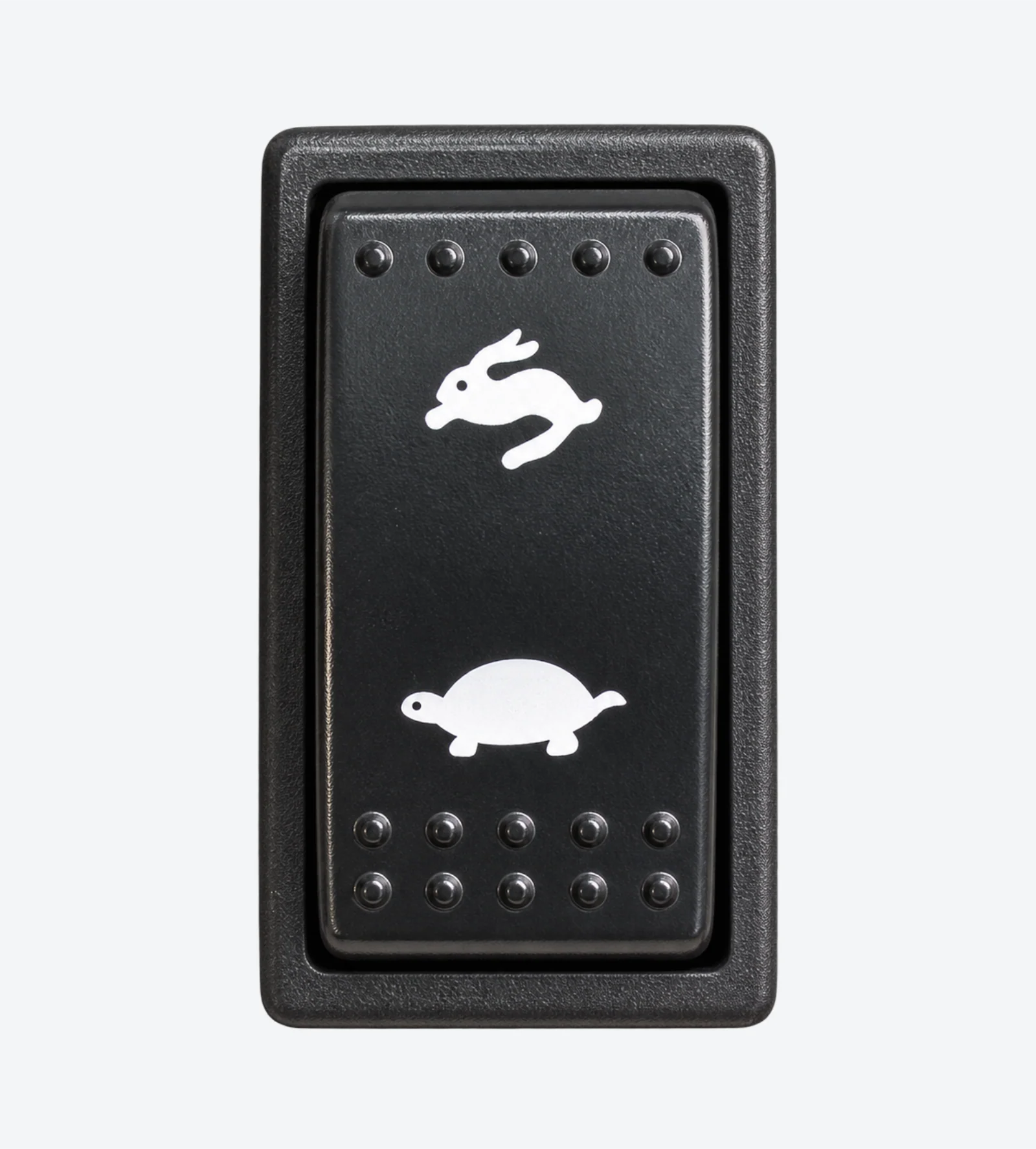

Two-Speed Travel
Standard two-speed travel offers speeds of 2.0 and 4.0 km/h. Use the lower speed for controlled maneuvering and the higher speed for moving around the jobsite.

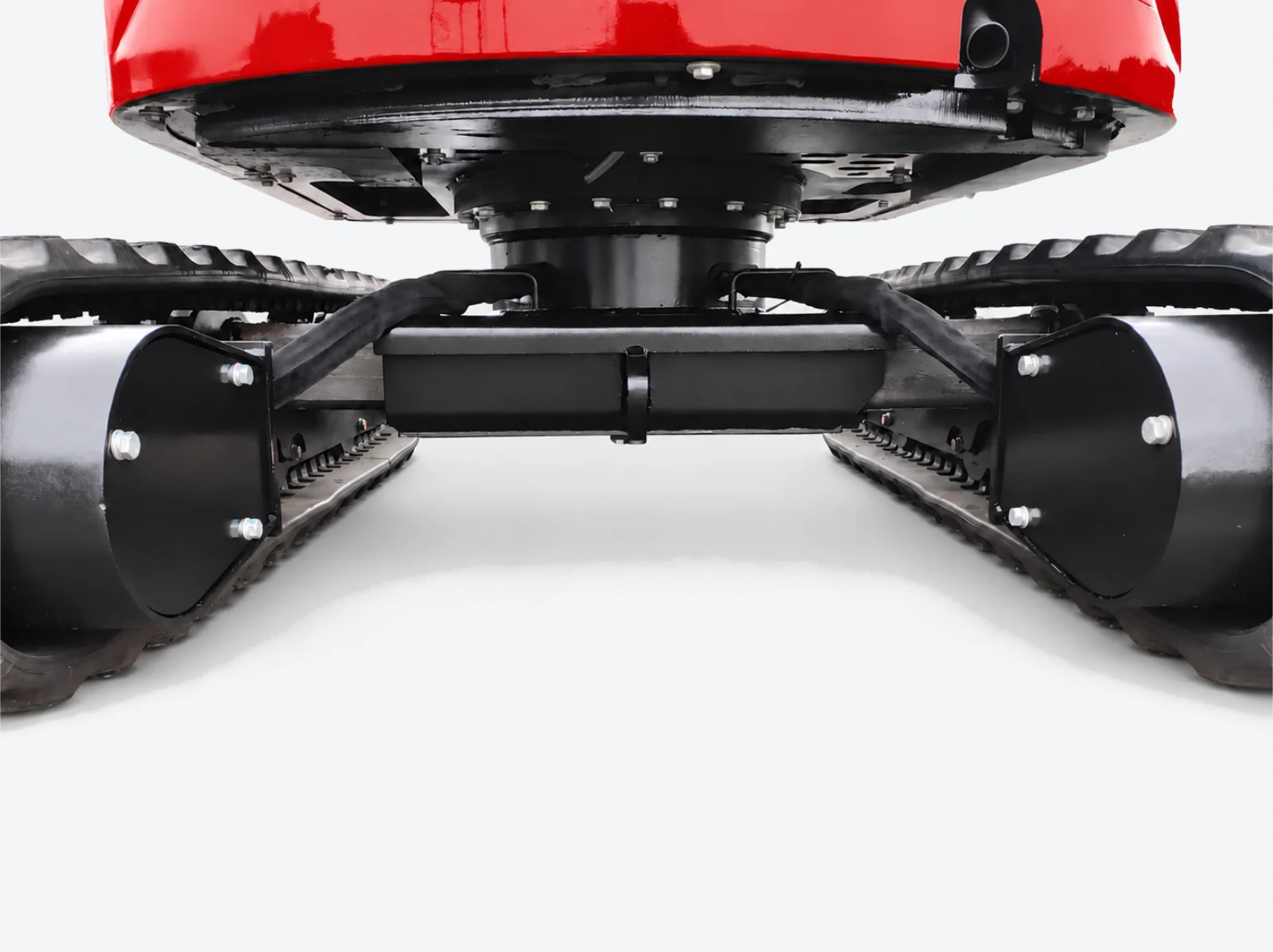

Retractable Undercarriage
The standard retractable undercarriage retracts to 990 mm for access through narrow passages and extends to 1,320 mm to provide a wider working stance.

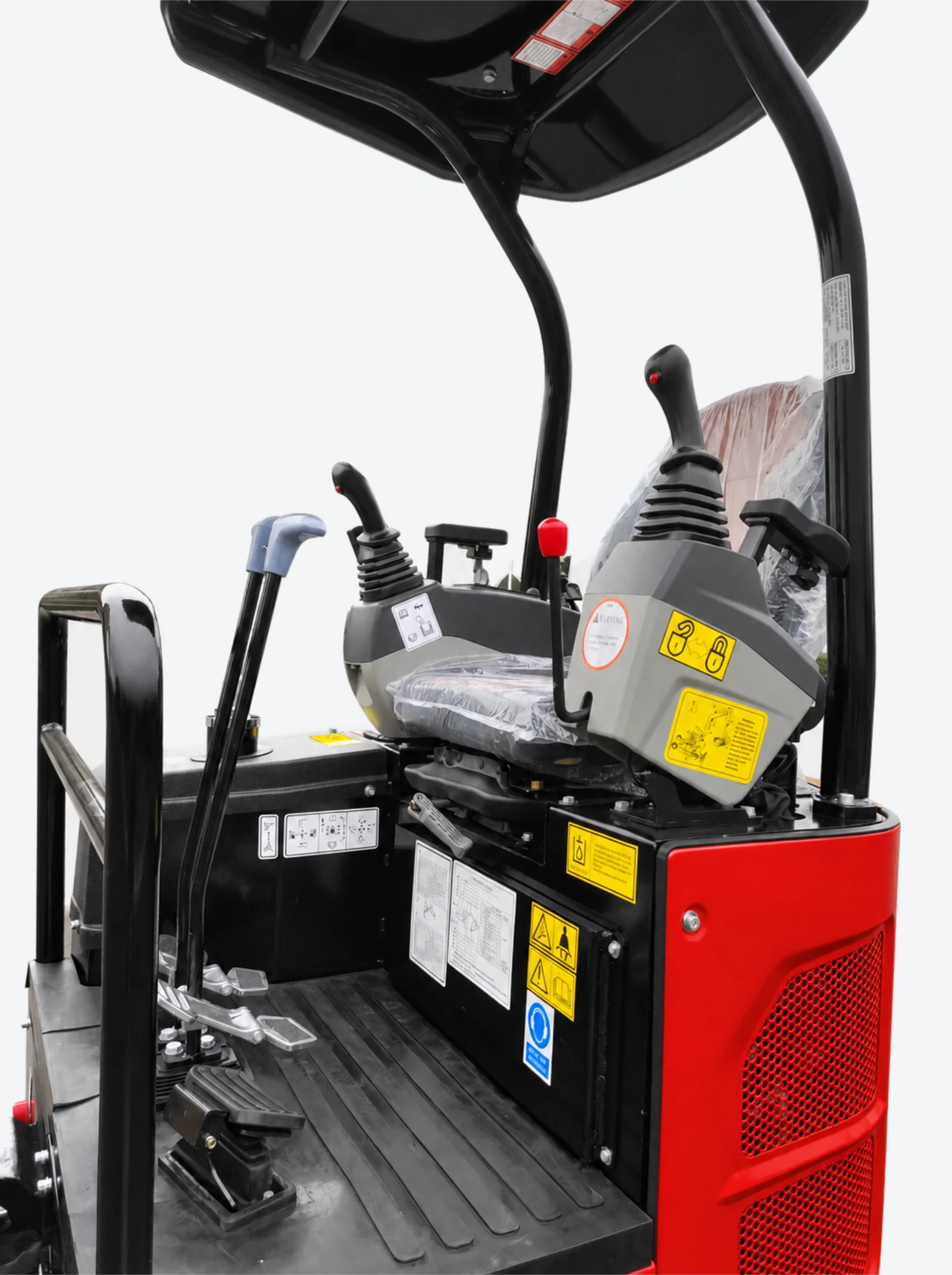

Hydraulic Pilot Controls
Standard seat-side hydraulic pilot joysticks provide smooth, precise control of digging functions, keeping the main controls within easy reach of the operator.

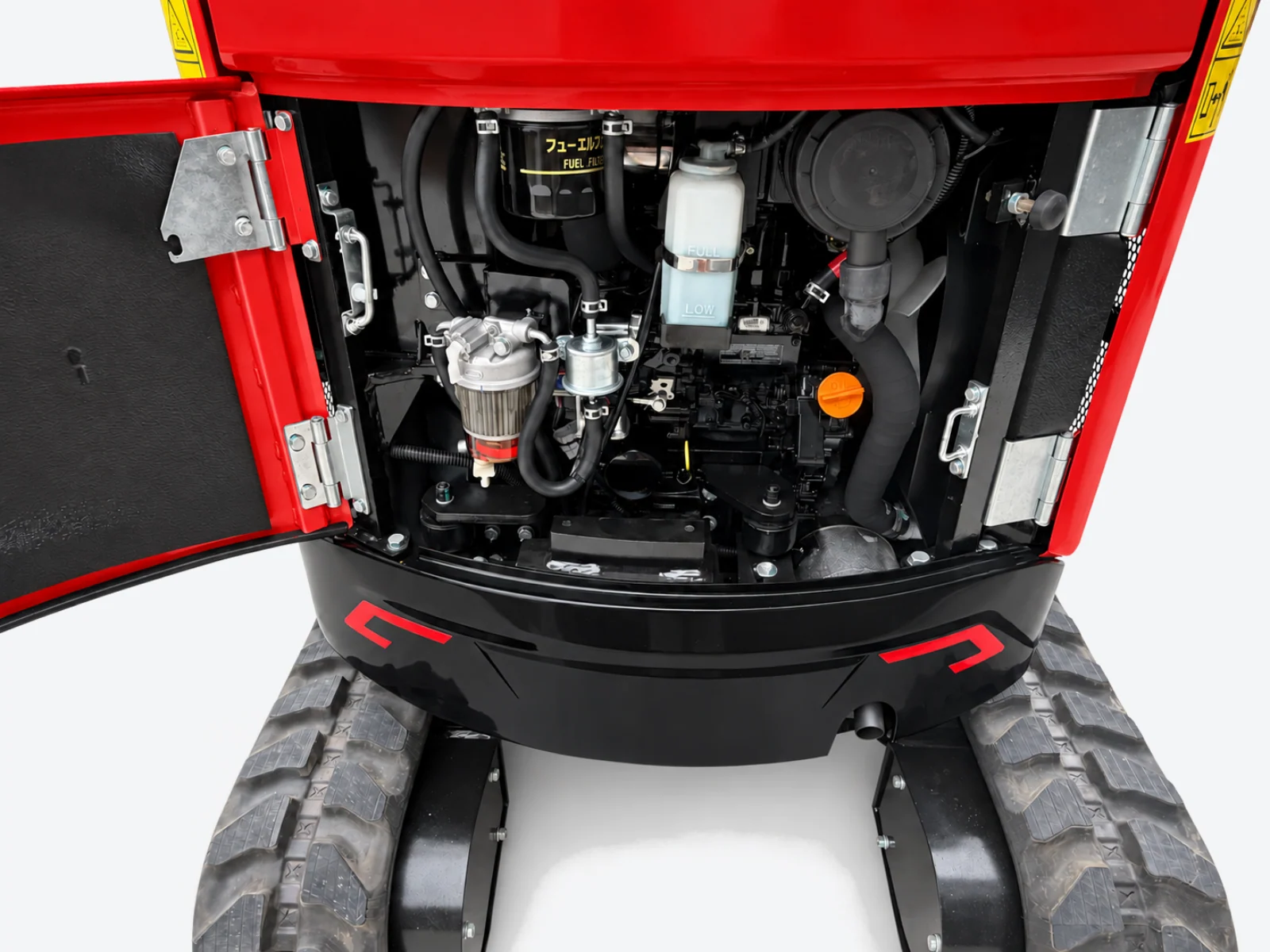

YANMAR Engine & Easy Service Access
The YANMAR 3TNV74F diesel engine powers the HS18, while the wide rear-opening engine cover provides convenient access to filters, engine oil and coolant, helping simplify routine inspections and maintenance.
TECHNICAL SPECIFICATIONS
Engine
- Engine Model
- YANMAR 3TNV74F
- Rated Power
- 11.2 kW (15.0 hp)
- Rated Speed
- 2,400 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
- Displacement
- 0.993 L
- Cylinders / Cooling
- 3 / water-cooled
- Max. Torque / Speed
- 47.6 Nm / 1,600 rpm
- Fuel Tank Capacity
- 21 L
Hydraulics
- Main Pump
- TAIFENG piston
- Swing Motor
- INLINE
- Travel Motor
- LONKING
- Max. Flow
- 50.6 L/min
- Working Pressure
- 25 MPa
- Hydraulic Tank Capacity
- 23 L
Machine & Dimensions
- Operating Weight
- 1,800 kg
- Bucket Capacity
- 0.04 m³
- Overall Length
- 3,569 mm
- Overall Width
- 990–1,320 mm
- Overall Height
- 2,395 mm
- Height to Top of Boom
- 1,270 mm
- Min. Ground Clearance
- 175 mm
- Counterweight Clearance
- 447 mm
- Tail Swing Radius
- 660 mm
Specifications are subject to change without notice.
Undercarriage & Arm
- Track Type
- Rubber
- Track Ground Length
- 1,230 mm
- Track Length
- 1,590 mm
- Track Gauge
- 760 / 1,090 mm
- Track Shoe Width
- 230 mm
- Turntable Width
- 990 mm
- Transport Ground Length
- 2,520 mm
- Arm / Boom Length
- 950 / 1,830 mm
Travel & Performance
- Travel Speed
- 2.0 / 4.0 km/h
- Swing Speed
- 9.5 rpm
- Max. Gradeability
- 58%
- Bucket Digging Force
- 16.2 kN
- Arm Digging Force
- 10.2 kN
- Ground Pressure
- 28 kPa
Working Range
- Max. Digging Depth
- 2,200 mm
- Max. Digging Height
- 3,357 mm
- Max. Dumping Height
- 2,410 mm
- Max. Vertical Digging Depth
- 1,275 mm
- Max. Digging Reach
- 3,910 mm
- Digging Reach at Ground Level
- 3,843 mm
- Min. Swing Radius
- 1,668 mm
- Boom Swing (Left / Right)
- 61° / 53°
- Dozer Lift / Depth
- 240 / 198 mm
STANDARD EQUIPMENT
- YANMAR 3TNV74F Diesel Engine
- ROPS Canopy
- Hydraulic Pilot Controls
- Retractable Undercarriage
- 230 mm Rubber Tracks
- Dozer Blade
- Boom Swing
- Two-Speed Travel
- Auxiliary Hydraulic Line
- 0.04 m³ Standard Digging Bucket
ATTACHMENT OPTIONS
Mechanical Quick Coupler
Hydraulic Breaker
Log Grapple
Digging Bucket
Cleaning Bucket
Tilting Bucket
Skeleton Bucket
Auger
Ripper
Rake
Hydraulic Thumb
Mechanical Thumb
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS18 Order?
The HERESTRONG export team can help with your HS18 configuration, attachment selection and quotation.
