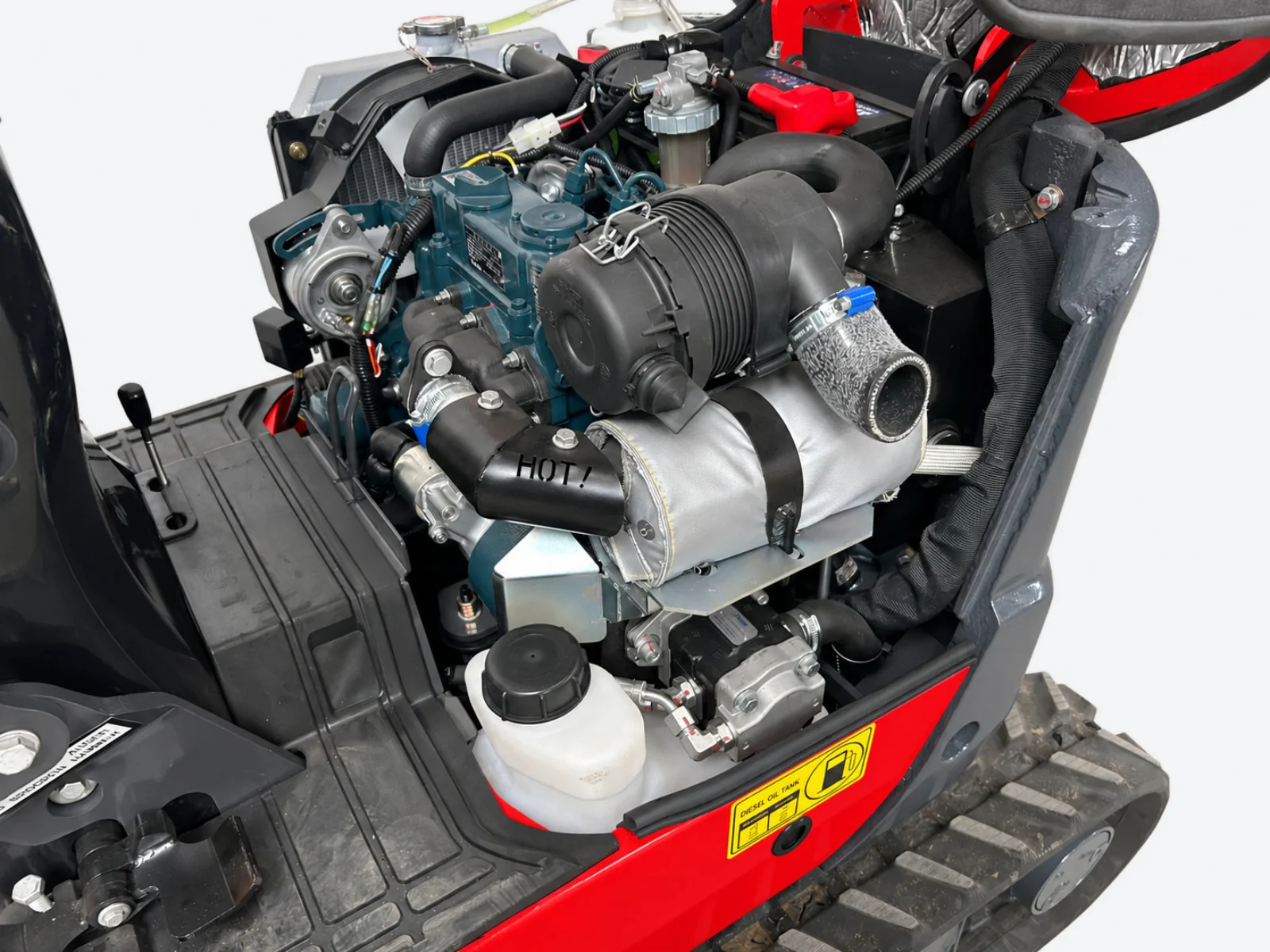

KUBOTA D722 Engine & Service Access
The rear cover opens to provide convenient access for routine inspection and maintenance.
HS12U Mini Excavator
The HS12U combines a KUBOTA D722 diesel engine, SHIMADZU hydraulic pump and standard hydraulic pilot controls for precise work in confined spaces. Its 750–990 mm retractable undercarriage, standard boom swing and compatible attachments support restricted-access excavation.

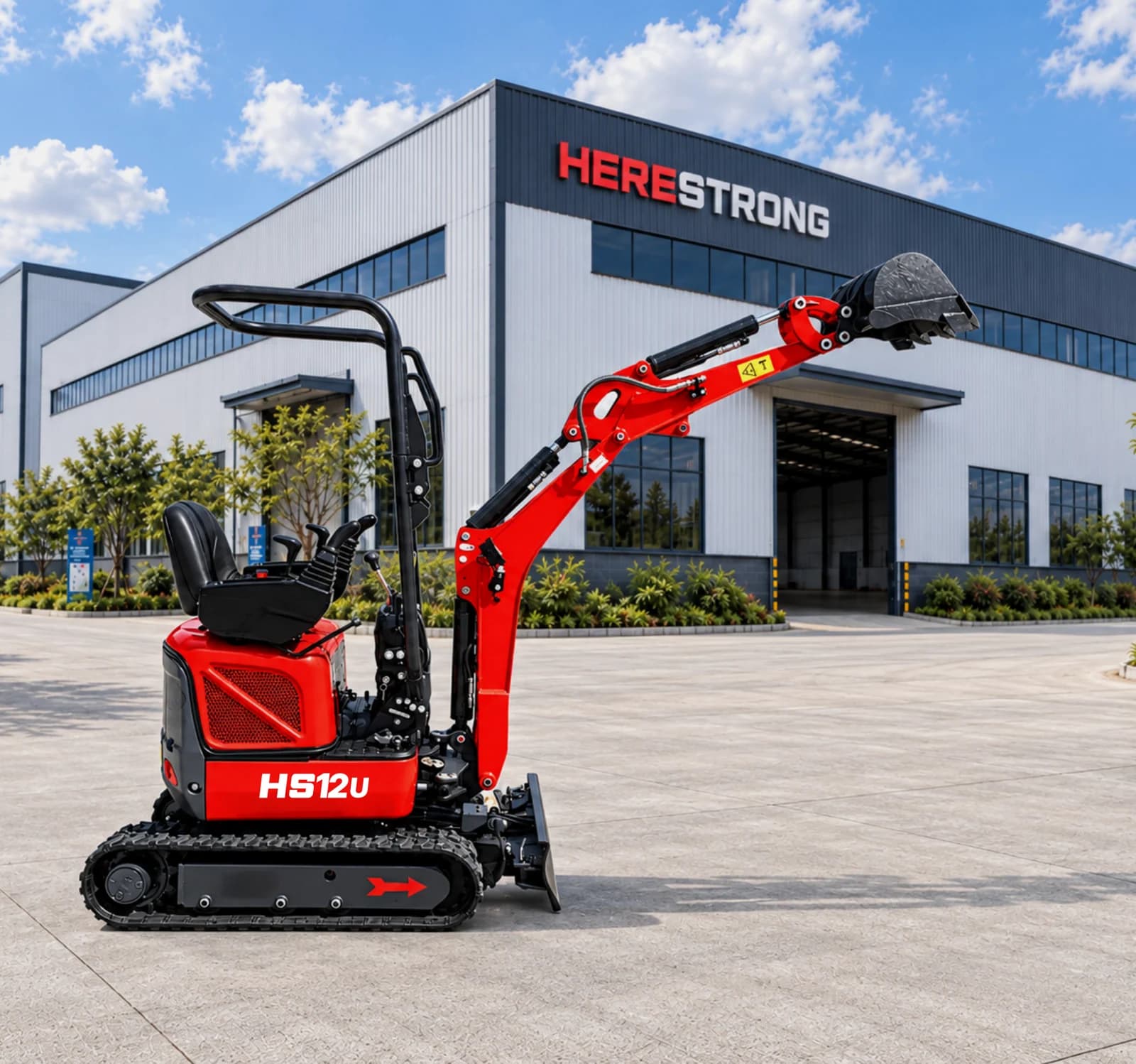

Main View
- Operating Weight
- 1,200 kg
- Engine Power
- 10.2 kW
- Max. Digging Depth
- 1,805 mm
KEY CONFIGURATION
- Engine
- KUBOTA D722
- Engine Power
- 10.2 kW
- Emissions
- EU Stage V / EPA Tier 4 Final
- Hydraulic Pump
- SHIMADZU
- Operation
- Hydraulic Pilot Controls
- Undercarriage Width
- 750 / 990 mm
- Boom Swing
- Standard
- Bucket Capacity
- 0.024 m³
MACHINE FEATURES

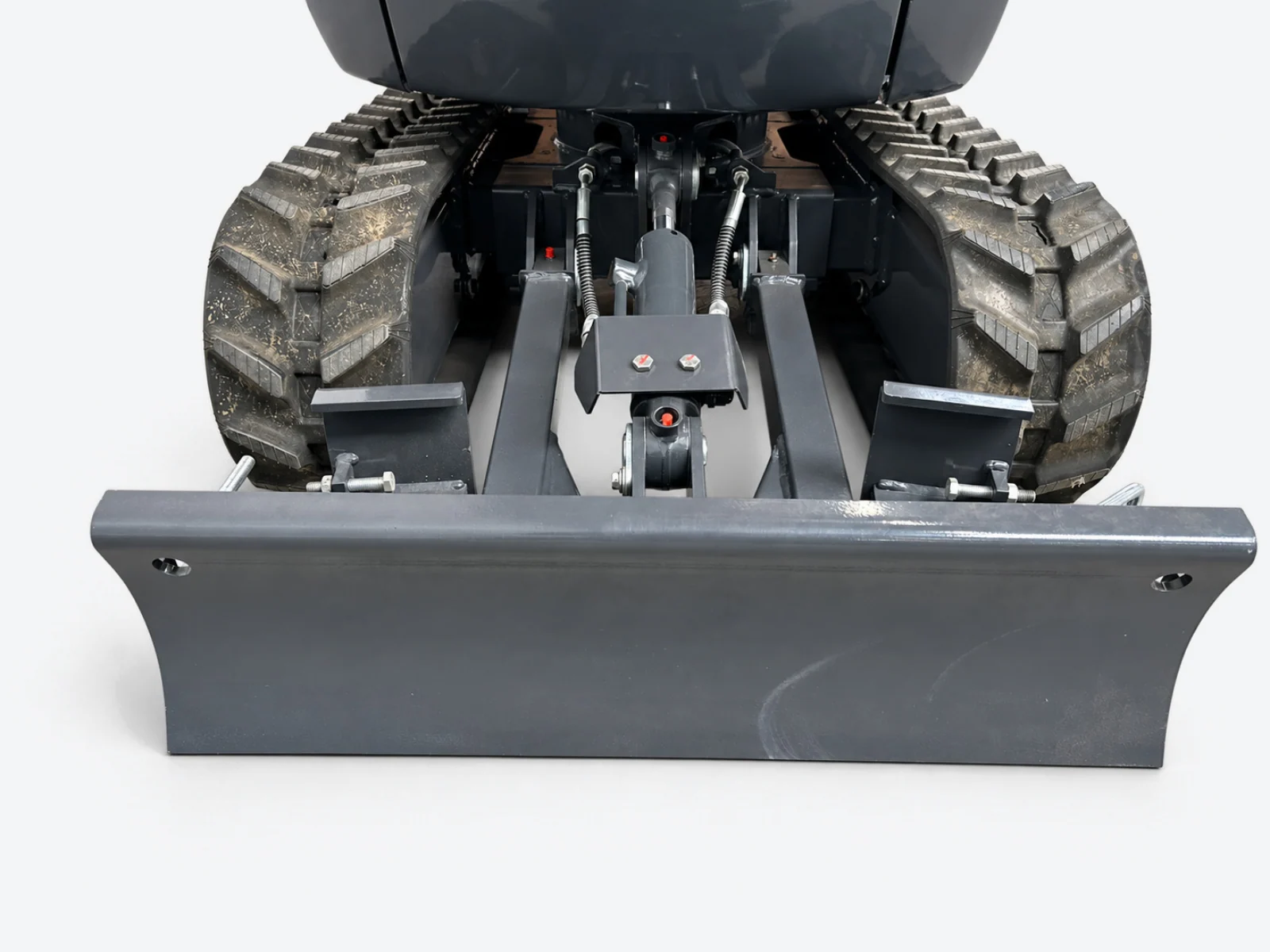

Retractable Undercarriage
The undercarriage retracts to 750 mm for narrow passages and extends to 990 mm for a wider working stance. The retractable blade can be adjusted to suit the working configuration.

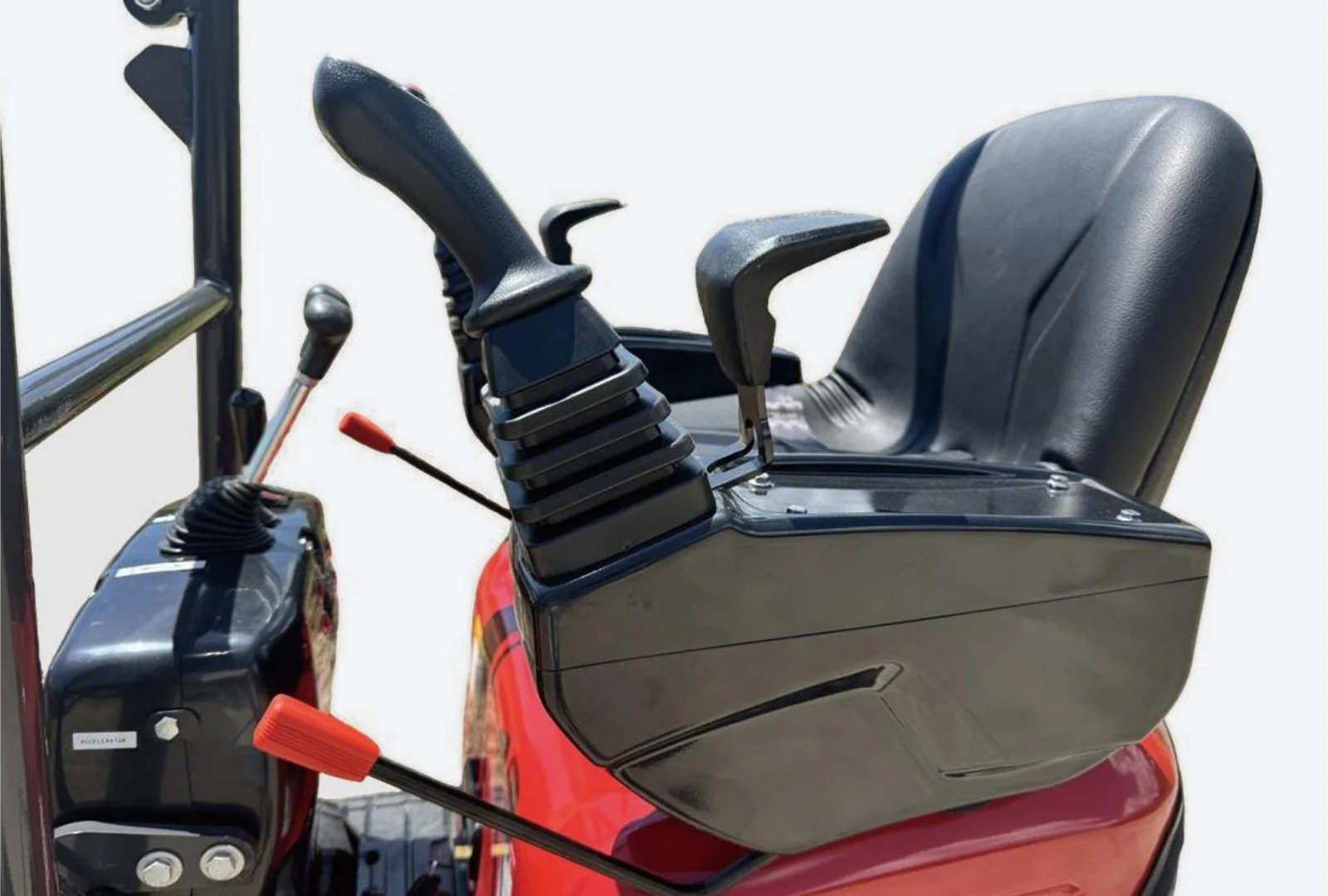

Hydraulic Pilot Controls
Standard hydraulic pilot joysticks are positioned beside the operator’s seat, providing smooth, precise control during digging and bucket positioning.

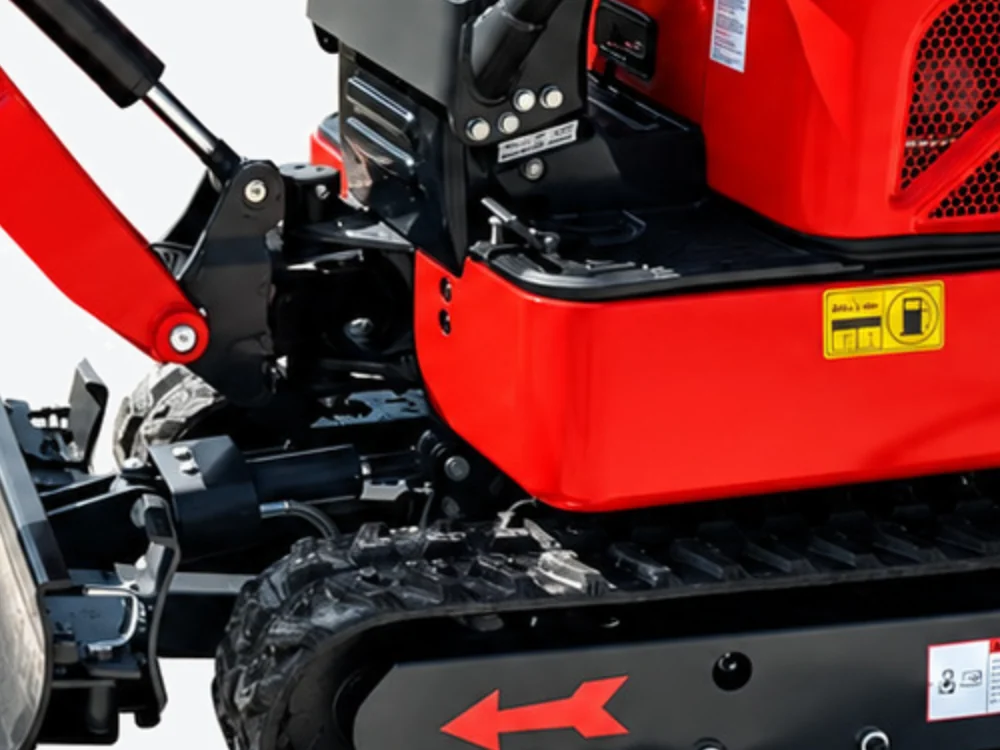

Boom Swing
The boom swings 55° left and 55° right for offset digging beside walls and obstacles in confined spaces.
TECHNICAL SPECIFICATIONS
Engine
- Engine Model
- KUBOTA D722
- Engine Type
- Water-cooled diesel (E-TVCS)
- Maximum Power
- 10.2 kW (13.7 hp)
- Speed at Max. Power
- 2,500 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
- Cylinders
- 3
- Bore × Stroke
- 67 × 68 mm
- Displacement
- 0.719 L
Machine
- Operating Weight
- 1,200 kg
- Operator Protection
- Foldable ROPS frame
- Bucket Capacity
- 0.024 m³
- Bucket Width
- 398 mm
- Overall Length
- 2,965 mm
- Overall Width
- 750 / 990 mm
- Overall Height
- 2,230 mm
- Hydraulic Tank Capacity
- 12.6 L
- Fuel Tank Capacity
- 12 L
Hydraulics
- Hydraulic Pump
- SHIMADZU
- Pump Flow
- 21 L/min
- Hydraulic Pressure
- 17.2 MPa
- Bucket Digging Force
- 10.4 kN
- Arm Digging Force
- 5.4 kN
Specifications are subject to change without notice.
Chassis & Arm
- Track Type
- Rubber
- Track Length
- 1,310 mm
- Track Width
- 180 mm
- Min. Ground Clearance
- 140 mm
- Ground Pressure
- 29 kPa
- Boom Swing (Left / Right)
- 55° / 55°
- Dozer Blade Lift Height
- 215 mm
- Max. Blade Depth
- 190 mm
- Blade Size (W × H)
- 750 / 990 × 200 mm
Travel & Swing
- Travel Motor
- Piston motor
- Travel Speed
- 0–4 km/h
- Max. Gradeability
- 58%
- Swing Motor
- Piston motor
- Swing Motor Flow
- 3.1 L/min
- Swing Pressure
- 3.9 MPa
- Swing Speed
- 8.3 rpm
Working Range
- Max. Digging Depth
- 1,805 mm
- Max. Digging Reach
- 3,390 mm
- Digging Reach at Ground Level
- 3,350 mm
- Max. Digging Height
- 3,079 mm
- Max. Dumping Height
- 2,225 mm
- Max. Vertical Digging Depth
- 1,510 mm
- Min. Swing Radius
- 1,273 mm
- Tail Swing Radius
- 510 mm
STANDARD EQUIPMENT
- KUBOTA D722 Engine
- 180 mm Rubber Tracks
- Retractable Undercarriage
- Two-Speed Travel
- Hydraulic Pilot Controls
- SHIMADZU Hydraulic Pump
- Hydraulic Pressure Test Ports
- Engine Start Safety System
- Hydraulic Lock System
- Foldable ROPS Frame
- Travel Alarm
- Boom LED Work Light
- Boom Swing
- Auxiliary Hydraulic Line
- 0.024 m³ Standard Bucket
ATTACHMENT OPTIONS
Mechanical Quick Coupler
Hydraulic Breaker
Log Grapple
Digging Bucket
Cleaning Bucket
Tilting Bucket
Skeleton Bucket
Auger
Ripper
Rake
Hydraulic Thumb
Mechanical Thumb
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS12U Order?
The HERESTRONG export team can help with your HS12U configuration, attachment selection and quotation.
