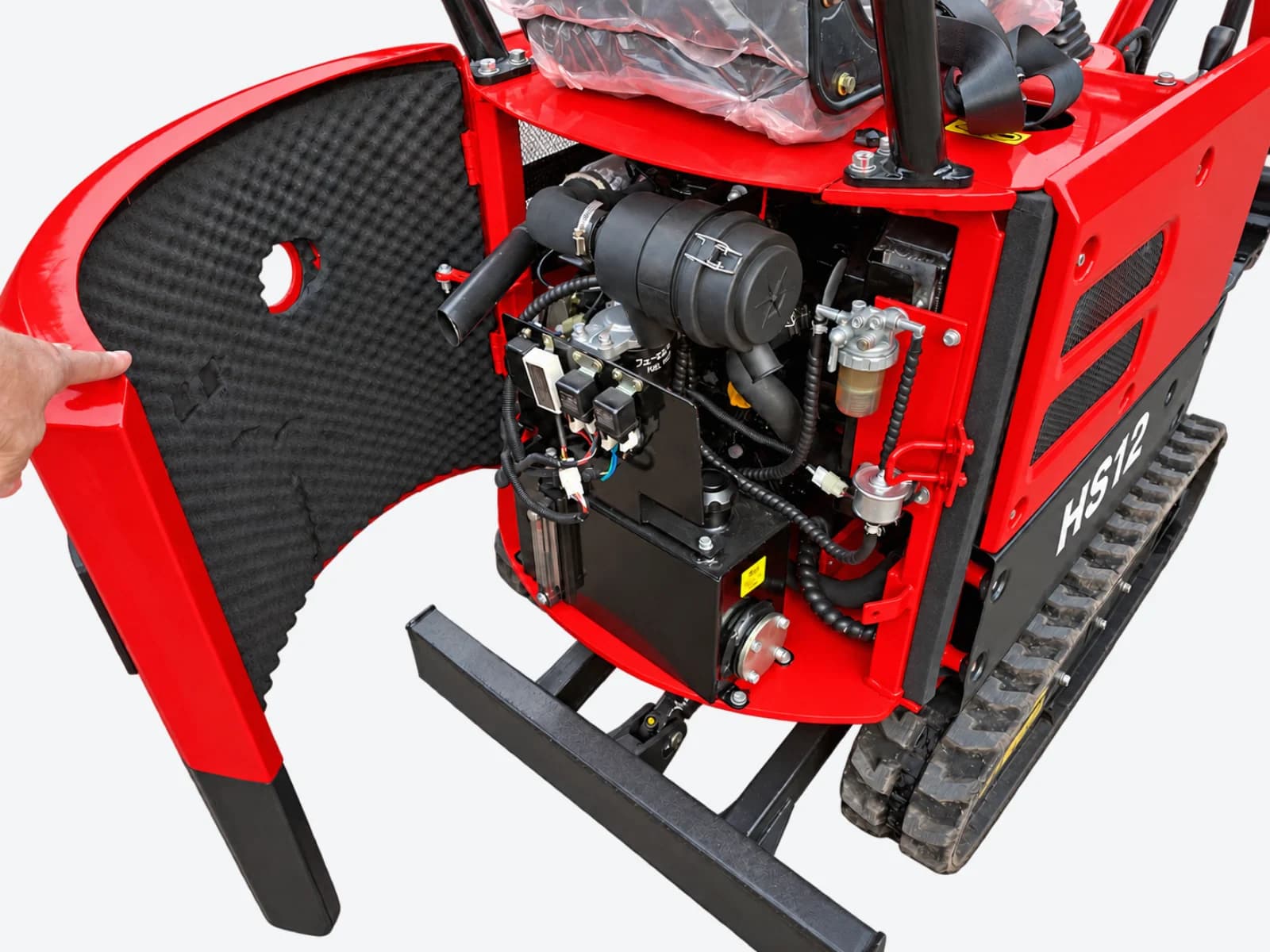

YANMAR Engine & Service Access
A YANMAR diesel engine powers the HS12, while the rear-opening engine cover provides easy access to the engine compartment for routine checks and maintenance.
HS12 Mini Excavator
Powered by a YANMAR EU Stage V diesel engine, the compact HS12 comes with standard boom swing for flexible digging in confined spaces. At just 900 mm wide and with a machine weight of 960 kg, it can access tight jobsites and is easy to transport. Compatible attachments expand its capabilities to include digging, breaking, drilling and material handling.

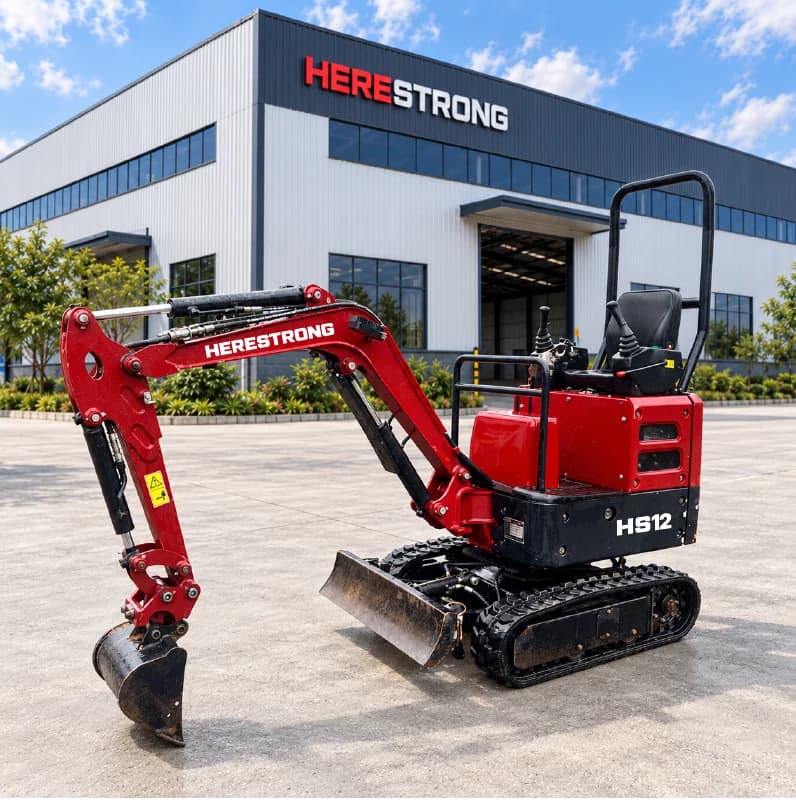

Main View
- Operating Weight
- 1,050 kg
- Engine Power
- 10.3 kW
- Max. Digging Depth
- 1,500 mm
KEY CONFIGURATION
- Engine
- YANMAR 3TNV70
- Emissions
- EU Stage V / EPA Tier 4 Final
- Operation
- Front Mechanical Controls
- Boom Swing
- Standard
- Standard Bucket Width
- 350 mm
- Bucket Capacity
- 0.024 m³
MACHINE FEATURES

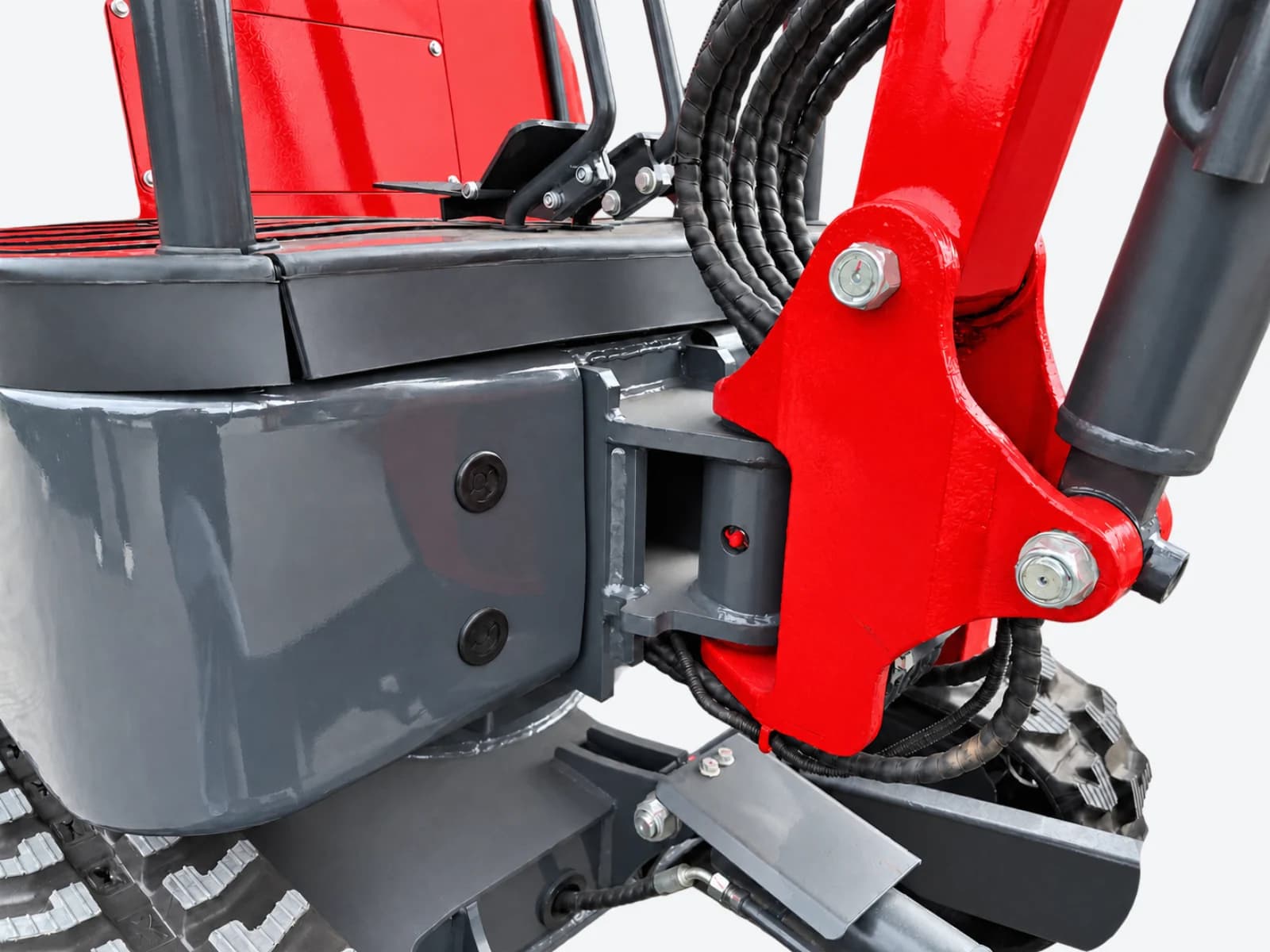

Boom Swing
Standard boom swing enables offset digging alongside walls and fences or near obstacles, helping position the bucket in confined spaces with less machine repositioning.

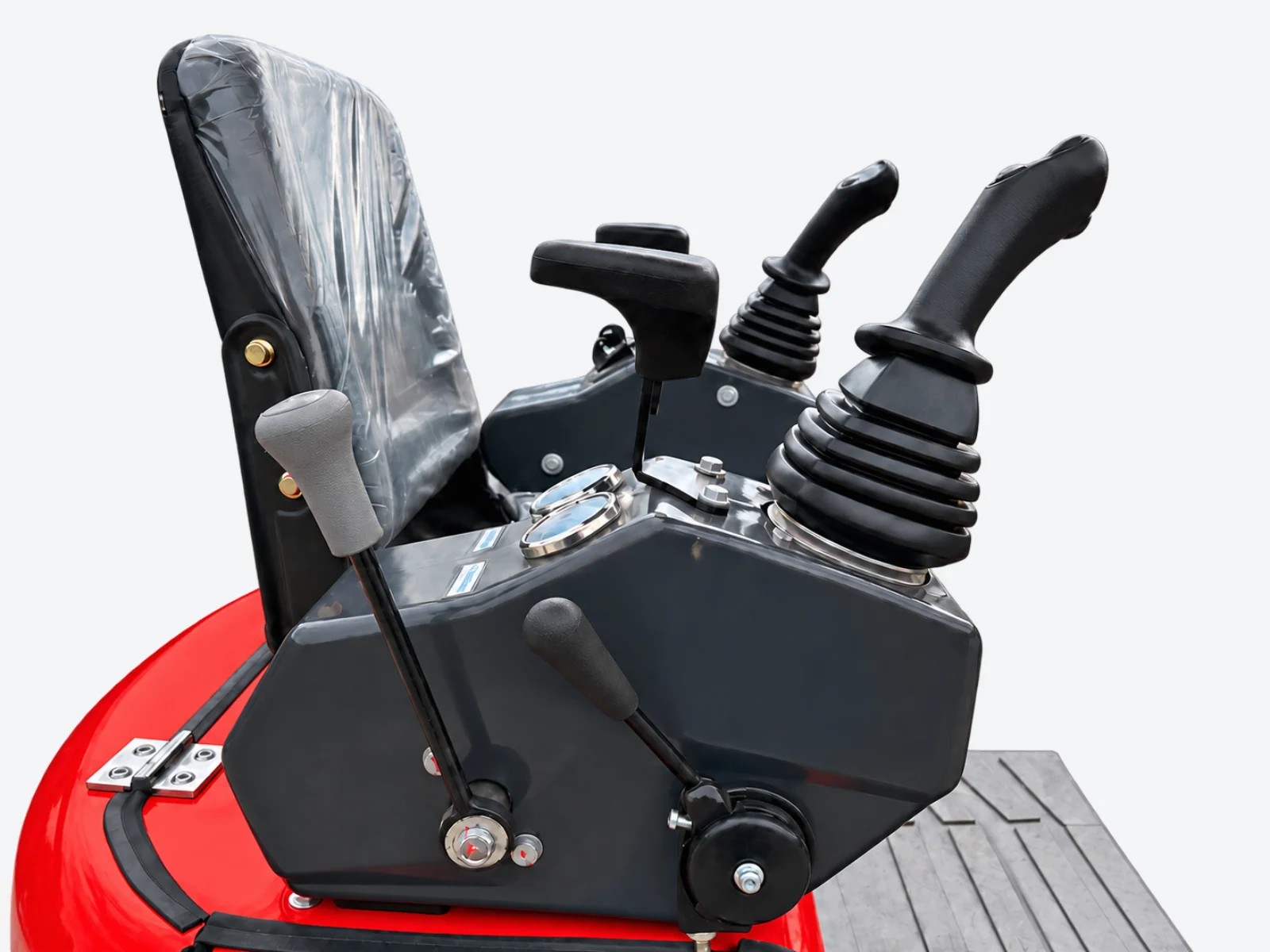

Hydraulic Pilot Controls
Optional hydraulic pilot joysticks are mounted beside the operator’s seat, providing smooth control and precise bucket positioning during digging and loading operations.

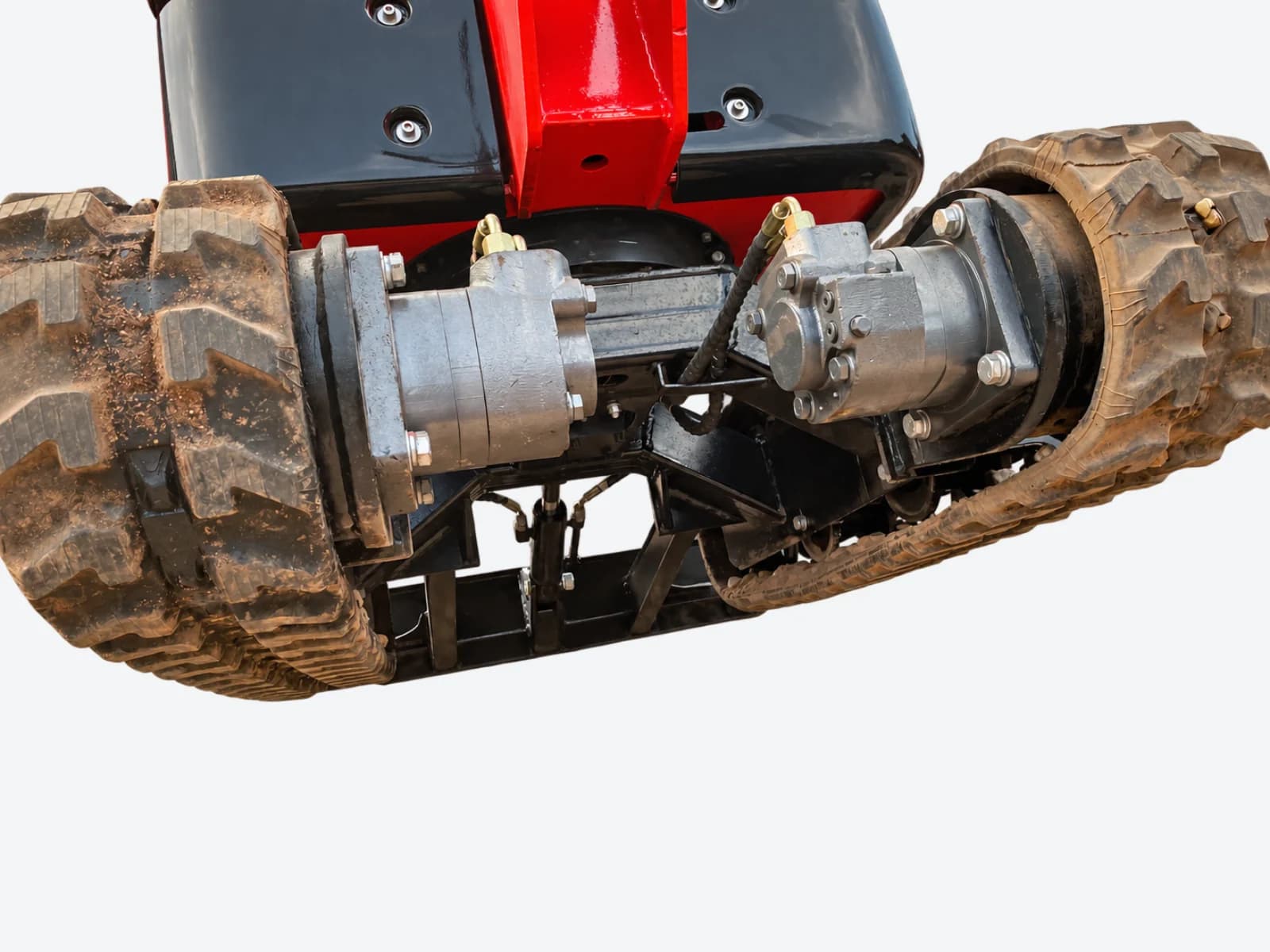

Retractable Undercarriage
The optional retractable undercarriage retracts to help the HS12 pass through narrow gates and passages, then extends to provide a wider stance during operation.
TECHNICAL SPECIFICATIONS
Engine
- Brand
- YANMAR
- Model
- 3TNV70
- Rated Power
- 10.3 kW (13.8 hp)
- Rated Speed
- 2,200 rpm
- Emissions
- EU Stage V / EPA Tier 4 Final
Machine
- Operating Weight
- 1,050 kg
- Machine Weight
- 960 kg
- Overall Length
- 2,867 mm
- Overall Width
- 900 mm
- Overall Height
- 1,385 mm
- Standard Bucket Capacity
- 0.024 m³
- Standard Bucket Width
- 350 mm
Hydraulics
- Hydraulic Pressure
- 17 MPa
- Bucket Digging Force
- 9 kN
- Arm Digging Force
- 7 kN
Chassis & Arm
- Track Type
- Rubber
- Track Width
- 180 mm
- Track Contact Length
- 900 mm
- Ground Clearance
- 245 mm
- Boom Length
- 1,480 mm
- Arm Length
- 800 mm
Travel & Swing
- Travel Speed
- 0–4.5 km/h
- Swing Speed
- 17 rpm
- Max. Gradeability
- 30° (58%)
Working Range
- Max. Digging Depth
- 1,500 mm
- Max. Digging Reach
- 2,925 mm
- Digging Reach at Ground Level
- 2,827 mm
- Max. Digging Height
- 2,685 mm
- Max. Dumping Height
- 2,059 mm
- Max. Vertical Digging Depth
- 973 mm
- Minimum Swing Radius
- 1,289 mm
- Tail Swing Radius
- 820 mm

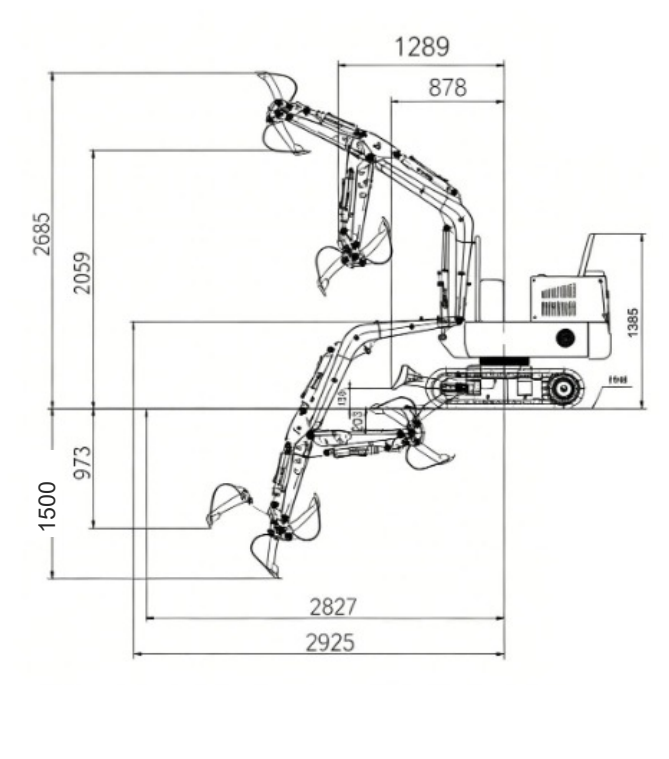

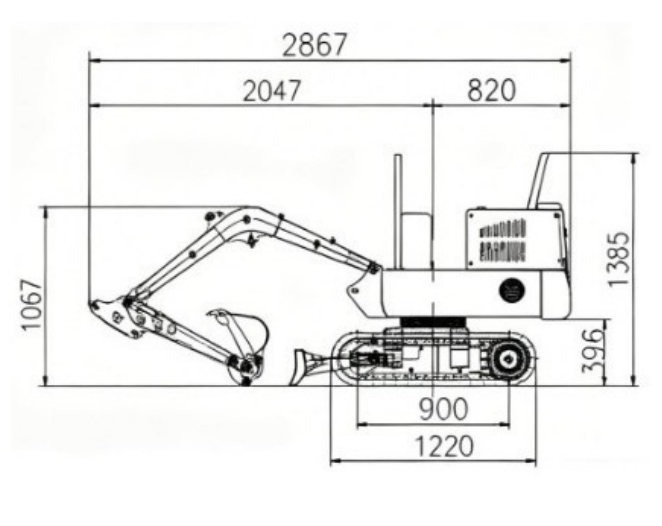

DIMENSIONS & WORKING RANGE
All dimensions in mm. Height with rear ROPS frame. Specifications are subject to change without notice.
STANDARD EQUIPMENT
- YANMAR 3TNV70 Engine
- Front Mechanical Controls
- Rear ROPS Frame
- Rubber Tracks
- 350 mm Standard Bucket
- Boom Swing
- Auxiliary Hydraulic Line
OPTIONAL EQUIPMENT
- Four-post ROPS Canopy
- Two-speed Travel
- Retractable Undercarriage
- Hydraulic Pilot Controls
ATTACHMENT OPTIONS
Mechanical Quick Coupler
Hydraulic Breaker
Log Grapple
Digging Bucket
Cleaning Bucket
Tilting Bucket
Skeleton Bucket
Auger
Ripper
Rake
Hydraulic Thumb
Mechanical Thumb
WARRANTY & SUPPORT
Support for your machine, from pre-shipment inspection to long-term maintenance.
2-Year Warranty
Every machine is covered for 24 months or 2,000 operating hours from the bill of lading (B/L) date, whichever comes first. Coverage is subject to HERESTRONG warranty terms and requires proper machine operation and maintenance.
Technical Support from Our Engineers
Our team provides technical guidance on machine operation, routine maintenance and troubleshooting to help customers address operating and service needs. A model-specific Operation Manual provides clear instructions for safe operation and proper equipment care.
Fast Spare Parts Supply
We supply spare parts for routine maintenance and repairs. A model-specific Spare Parts Catalog helps customers identify the correct components and order replacement parts accurately, reducing the risk of ordering errors.
Pre-shipment Test-Run Video
Before shipment, we can provide a test-run video of your machine, allowing you to review its operation, working functions and visible configuration remotely.
Ready to Discuss Your HS12 Order?
The HERESTRONG export team can help with your HS12 configuration, attachment selection and quotation.
